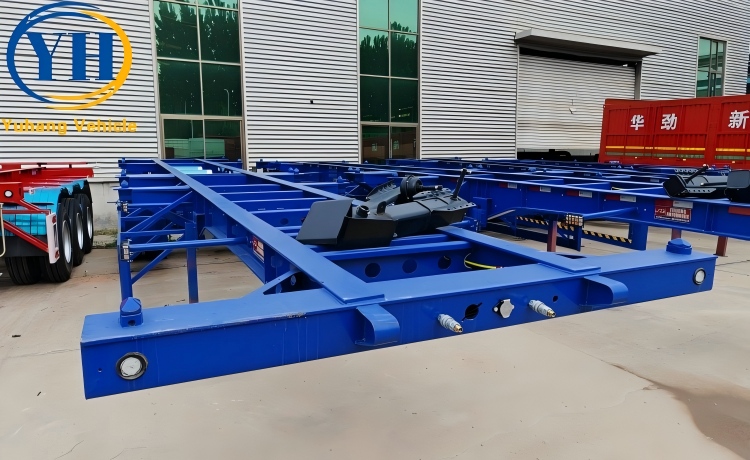

3 Axle 40Ft Container Chassis Trailer will be shipped to Uzbekistan
These 3 set of 40ft container chassis trailer will be sent to Uzbekistan. The customer is mainly engaged in the container cargo transportation business. He saw that many local people are using the semi trailer with the YUHANG logo, so he contacted our online customer service to inquire about the sales price of the 40ft container chassis trailer.
After the customer left his contact information, Lincoln, the sales manager, sent a very detailed quotation. After nearly a month of communication and solving all his concerns, the Uzbekistan customer customized 3 axle 40ft container chassis.

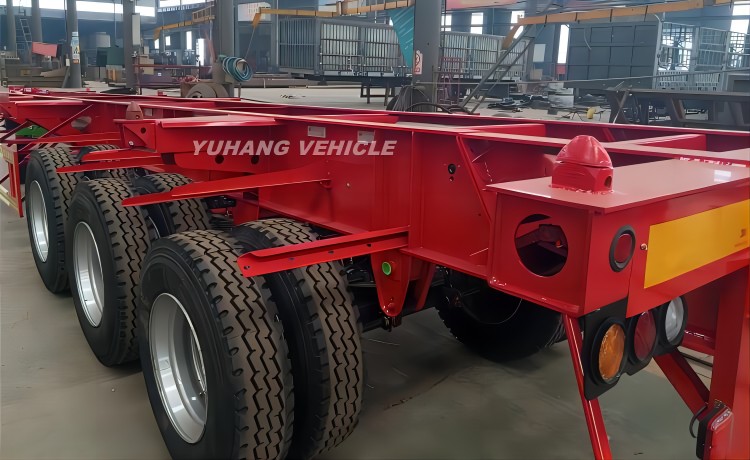

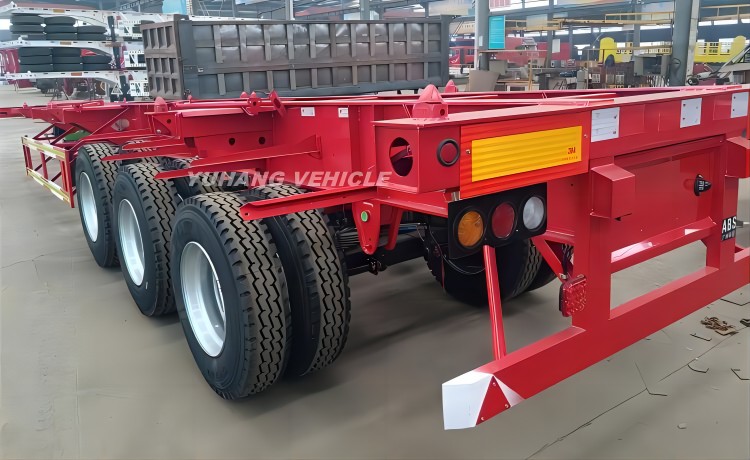

As the largest and most mature semi trailer manufacturer in China, the quality of YUHANG brand skeletal container transport trailer is more guaranteed. We determined the height, length and width of the container chassis trailer according to the needs of customers. Now the 40ft container chassis trailer has been produced, I hope the customer is satisfied and everything goes smoothly.

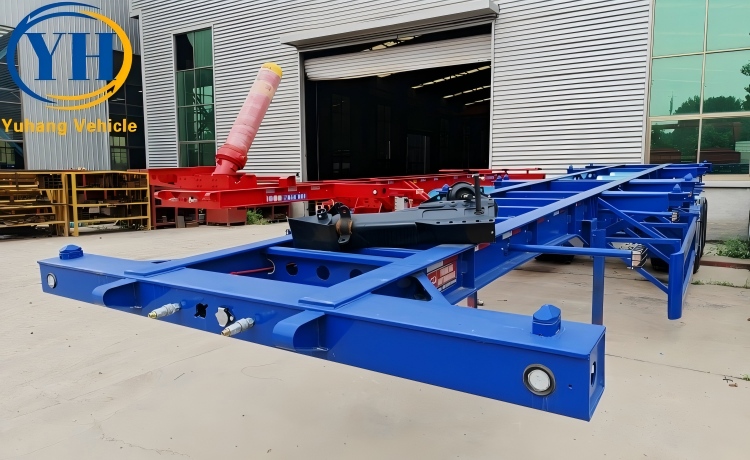

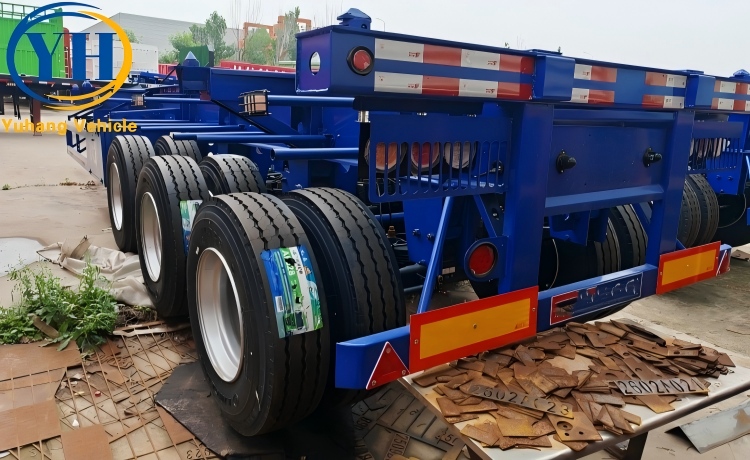

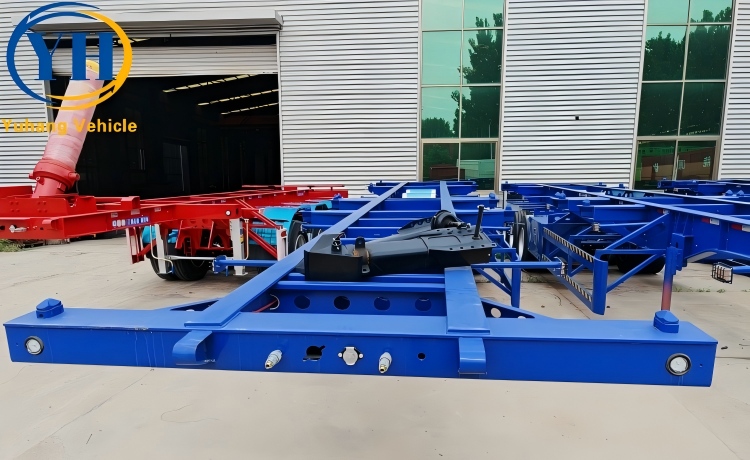

The 40ft container chassis trailer provided by YUHANG VEHICLE for customers has a skeleton structure, which is mainly used in supporting logistics systems such as ships, ports, routes, and docks. It is specialized in transporting various containers and has sufficient strength to be used repeatedly use.
The size of the loading part of the skeletal semi trailer is determined according to the size of the standard container, and twist locks device for fixing the container is installed at the four corners of the trailer to ensure the integrity of the goods during transportation.
Since the goods are directly packed inside the container, there is no need for secondary packaging of the goods, which saves packaging costs. And it can be directly transferred from one transport vehicle to another transport vehicle, which can quickly realize loading and unloading of containers and improve work efficiency.
What are the advantages of container skeleton semi trailer?
1. Skeleton semi trailer is a type of container transport trailer. The frame of the container skeleton trailer is welded by longitudinal beams, cross beams and front and rear end beams. The longitudinal beam is made of high-quality steel plate 16Mn submerged arc welded into an I-shape (the main dimensions are 480mm and 500mm), the beam is made of high-quality steel plate punched into a groove shape, and the front and rear end beams are welded rectangular sections.
2. The middle container locking device is equipped with an integral long beam to improve the carrying capacity of the container locking device. The four container locking devices at the front and rear ends are fixed structures, and the middle is a hidden structure. When loading containers, the locking device in the middle can be lowered below the level of the cargo platform as required.
3. All parts of the container skeleton semi trailer are treated by shot blasting and derusting. The whole frame is assembled and welded on the positioning stand. It has reasonable structure, high strength, beautiful appearance and long service life.
4. The skeleton semi trailer is specially used for shipping containers of various specifications. Light weight, simple operation, low investment cost and convenient maintenance.

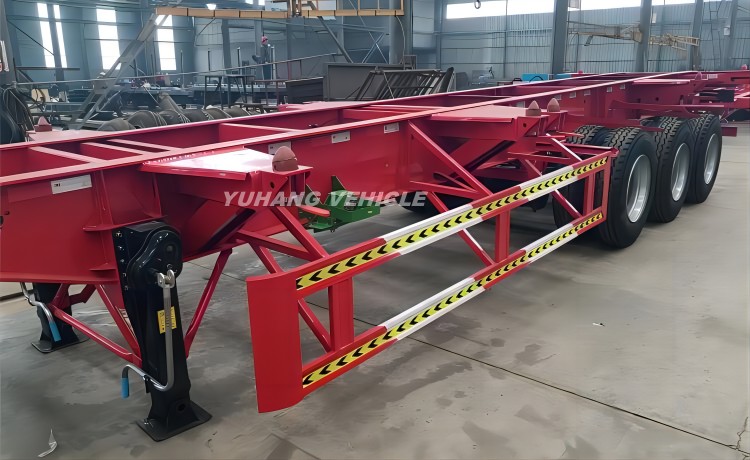

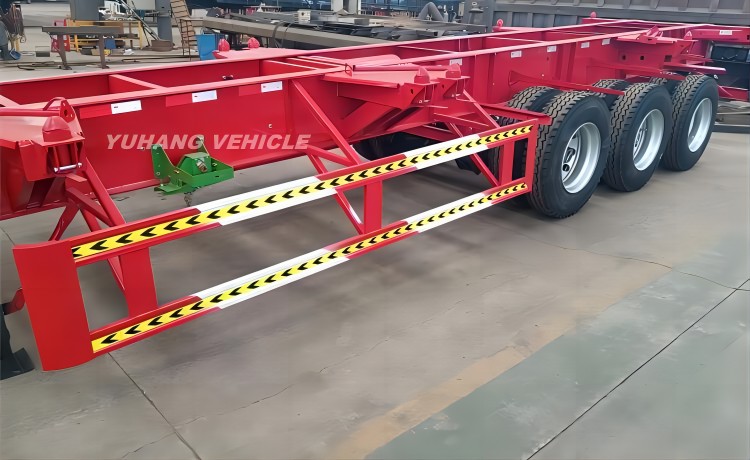

The technical configuration of the 3 axle 40ft container chassis trailer is: longitudinal beam height 480mm, upper flange 14mm, lower flange 16mm, web 8mm, 2 units standard tool boxes, 2 units spare tire racks, 12 sets of container twist locks, FUWA 13 ton axles *3 sets, JOST 28T single action outriggers.
This trailer uses WABCO ABS, which greatly increases its safe driving performance and reduces tire wear.
At the same time, we also have other container chassis trailers of different specifications and sizes for you to choose. The YUHANG factory sells them directly to customers to ensure quality and save costs.
You can learn about different types of skeleton semi trailers, such as: 2 axle skeleton semi trailer, 40ft container chassis trailer, 3 axle skeleton container transport trailer, etc.
Through the following video, you can have a clearer and more detailed understanding of the skeleton container chassis trailer, welcome to watch!
We will provide you with comprehensive information on the manufacturing process, quality inspection, packaging and transportation, and customer feedback of 3 axle 40ft container chassis trailer.
Sincerely hope that our semi trailer will contribute to your transportation business and create more profit value, please contact us as soon as possible to get a quotation!
