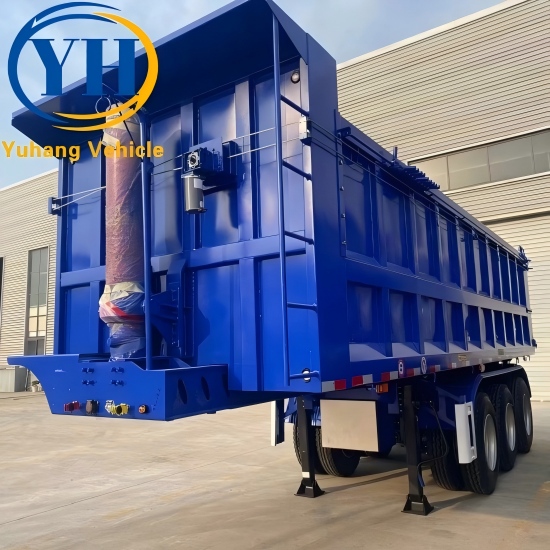

120 Ton Heavy Duty Tipper Trailers

Description

Description：

The 120 ton heavy duty tipper trailers, also known as the dump semi trailer, it is widely used in many transportation scenarios such as: construction, agriculture, commerce, and livestock.

Dump semi trailer box body has two different loading structure styles, rectangular and u shape, and can load 25 cubic meter, 30 cubic meter, 35 cubic meter, 45 cubic meter, 60 ton, 80 ton, 100 ton and 120 ton heavy duty goods.

Our 120 ton heavy duty tipper trailer is reliable in quality, sturdy and durable, and has accumulated valuable successful cases in Southeast Asia, Africa, South America and other countries.

YUHANG has done a lot of technical upgrades and accessories updates to ensure that the dump semi trailer has a more efficient operating capacity.

120 ton heavy duty tipper trailers for sale

YUHANG 6 axle heavy duty dump semi trailer

China’s leading tractor tipper trailer manufacturing factory

Advantage：

● The main girder adopts a double-web design structure, which has a stronger bearing capacity and is not easy to deform and break when heavy cargo is loaded.

● The outer side of the trailer box body is reinforced with ribs to reduce the effective impact force of the cargo, and has good compression resistance and prolongs the service life.

● It adopts the HYVA brand hydraulic cylinder lifting system, which has stronger lifting capacity, higher height, more stable lifting and no rollover.

● The main components adopt advanced processing equipment, and the assembly machine is used for precise proportioning to ensure stable performance of the tipper trailer and easy maintenance.

● Spray high-quality polyurethane paint to prevent the dump semi trailer from rusting and have a beautiful appearance.

Specification:

Dimension: 12500mmx2800mm x3900mm or customized

Main Beam: height 500mm, upper plate 16mm, middle plate 10mm, lower plate 20mm, material high strength steel

Bottom Platform: 6mm thick checkered plate

Sidewall: 4mm

Lifting System: HYVA lifting cylinder

Axle: 13T/16T/20T, FUWA/BPW brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: heavy duty mechanical suspension

Spring Leaf: 90(w)mmx13(thickness)mmx10 layers

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded type)

Landing Gear: JOST brand 28 tons

ABS: optional

Color: optional

Brake System: WABCO valve

Light: LED light

Voltage: 24V

Socket: 7-pin Socket (for 7 wire harness)

Painting: polyurethane anti-corrosion paint

Accessories: one standard tool box, spare tire carrier

Shipping Terms: bulk carrier, Ro-Ro ship

---
