20 Foot Bomb Cart Trailer

Description

Description：

YUHANG is a high-quality 20 foot bomb cart trailer manufacturer in China, and we always insist on providing customers with the most reliable transport vehicles and comprehensive services.

Our skeleton semi trailers have been successfully exported to many countries in Africa, the Middle East and Southeast Asia, and are deeply loved by them.

The container chassis trailers of our factory have strong loading capacity, simple operation, high transportation efficiency, economical and environmental protection, and can create more profit value for customers.

We can design and customize bomb cart trailers according to your special transportation needs, 30 ton, 50 ton, 60 ton, 20 feet, 40 feet, 45 feet for you to choose.

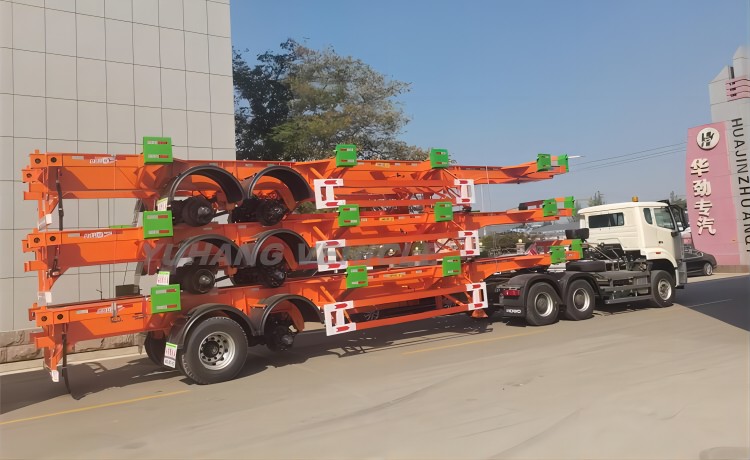

20 foot bomb cart trailer for sale

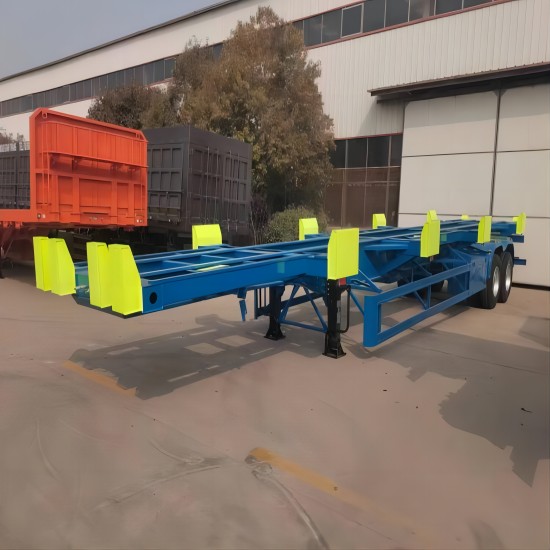

2 axle skeletal container transport trailer price

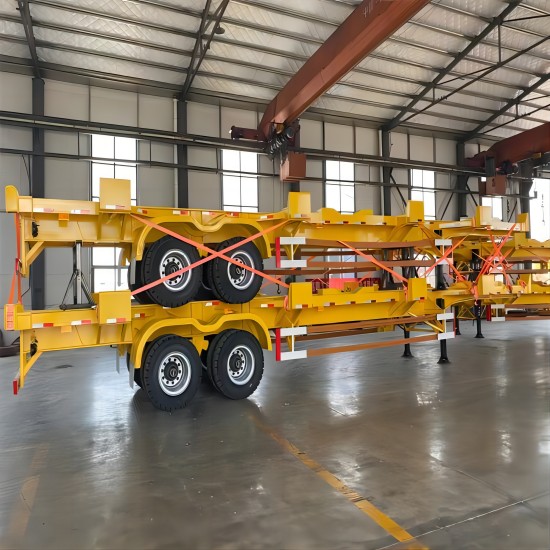

Our skeleton trailers will transport to customer

Advantage：

● According to different road conditions, the advanced computer design auxiliary system is used to analyze the stress and bearing data to improve the safe operation factor of the 2 axle container chassis trailer.

● YUHANG skeleton trailers will go through strict tests and pressure-bearing performance inspections before leaving the factory.

● We have professional technical team to provide you with comprehensive and optimal vehicle transportation solutions in compliance with local regulations.

● The whole vehicle adopts world-renowned brand parts to prolong the service life and save costs.

Specification:

Manufacturer: YUHANG 20 Foot Bomb Cart Trailer

Dimension: 11500x2500x1500mm

Loading Capacity: 20-50t

Application: transport 20ft/40ft container

Main Beam: height 500mm, upper plate 14mm, middle plate 8mm, bottom plate 16mm, Q345B carbon steel

Axles: 2 axles, 13T/14/16T, FUWA/BPW/ brand

Tire: 8 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: mechanical suspension or air suspension

Spring Leaf: 90(w)mmx13(thickness)mmx10 layers or 100mmx12mmx12 layers

King Pin: JOST brand 3.5 inch (bolted or welded)

Landing Gear: JOST brand 28 ton, double speed

Twist Locks: 4,8,12 sets (lifting or screw type)

Brake System: WABCO brake valve

ABS: optional

Light: LED light

Voltage: 24V

Socket: 7-pin Socket (for 7 wire harness)

Painting: polyurethane anti-corrosion paint

Accessories: one standard tool box, spare tire carrier

Shipping Terms: bulk carrier, Ro-Ro ship or 45ft HQ container

---
