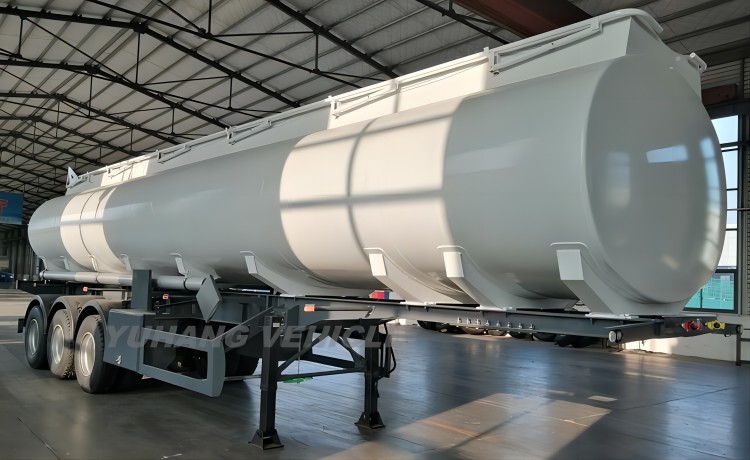

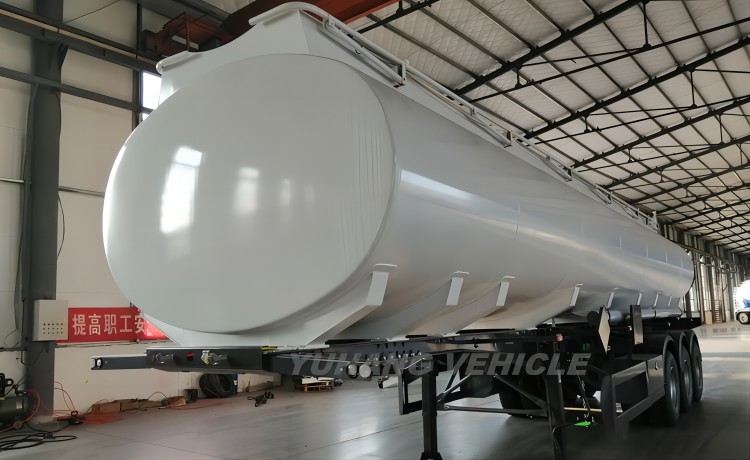

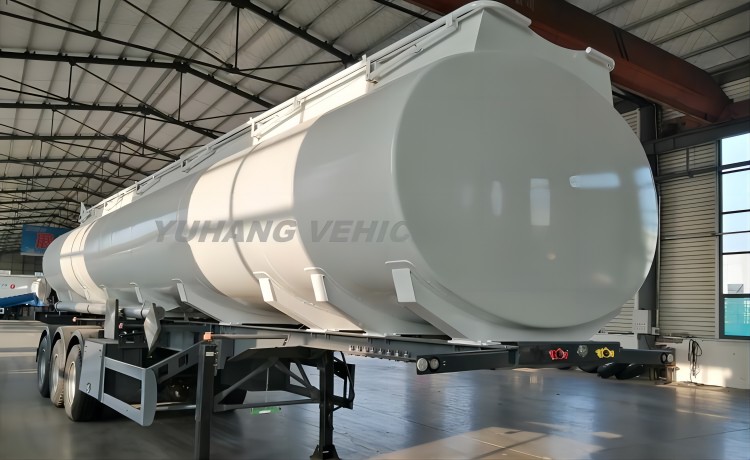

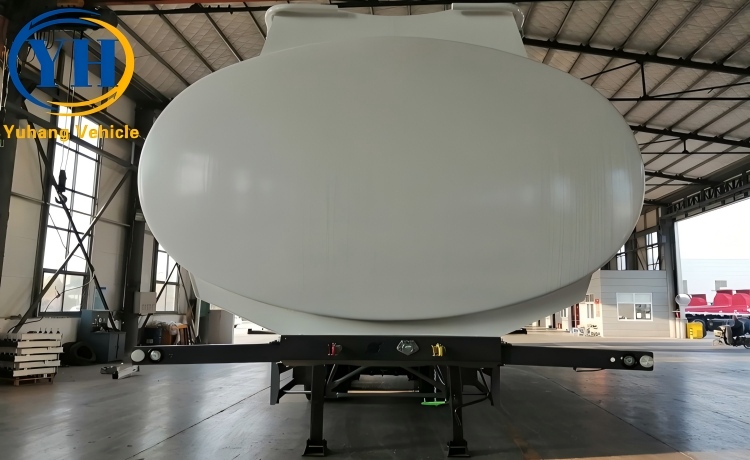

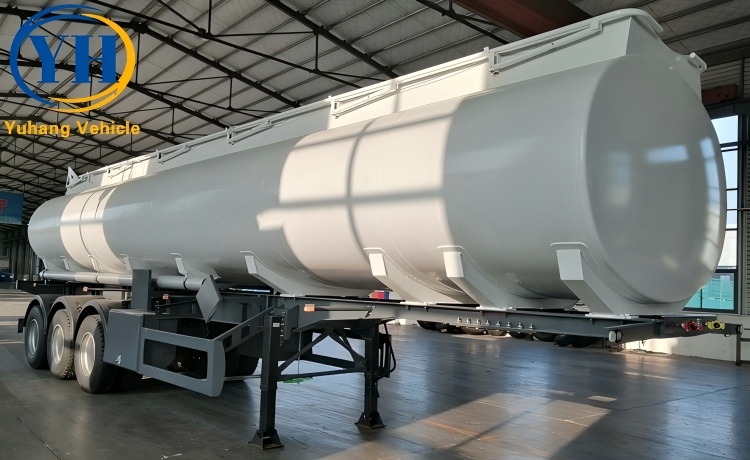

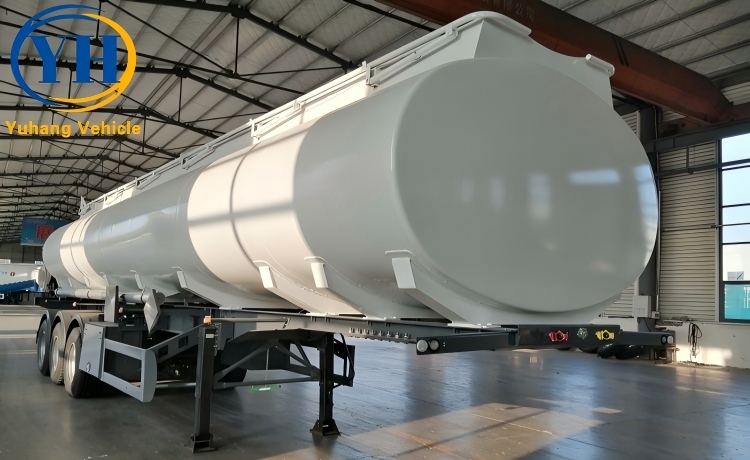

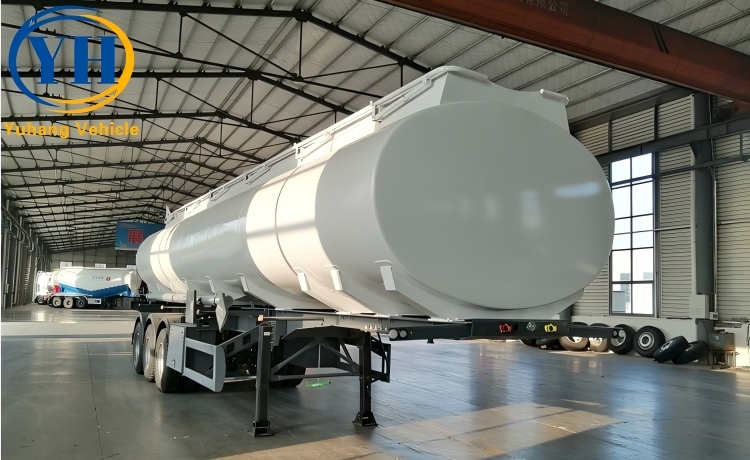

3 Axle 40000L Tank Semi Trailer

Description

Description：

3 axle tank semi trailer has a loading capacity of 40,000 liters and tanker for sale is generally used for medium and long-distance transportation of fuel liquid substances to achieve rational allocation and utilization of resources.

Tank semi trailer is mainly used to transport diesel oil, petroleum, coal tar, gasoline, etc., and are mainly used in gas stations, logistics companies, refineries and other places.

The shape of the tank semi trailer has oval and square design structures, and the tank body materials are carbon steel, stainless steel, and aluminum alloy for customers to choose.

YUHANG VEHICLE can provide tank semi trailers with different specifications and configurations of 20-90m³, support customized production, and meet the different transportation needs of customers.

3 axle tank semi trailer for sale

40000l tanker trailers with the best price

China first class fuel tanker trailer supplier

Advantage:

A: The 3 axle 40000l tank semi trailer made of high-strength wear-resistant steel plate of yuhang vehicle can be applied to a variety of different and complex road conditions to meet the needs of customers for loading and transportation.

B: The tank body is integrally formed by robotic automatic welding technology, which ensures high-quality welds, long service life, low maintenance cost and beautiful appearance.

C: All tank semi trailer have to go through pressure test and metal inspection test before leaving the factory to ensure that the tank body has good sealing performance.

D: Shot blasting treatment of the whole vehicle to remove rust and oil stains, improve paint adhesion, one-time primer, uniform paint film thickness, and corrosion resistance.

Specification:

Dimension: 11500mm*2500mm*3700mm

Tare Weight: about 8000kg

Total Volume: 40000L or customized

Main Beams: Q345B carbon steel

Tank Body Material: 5mm Q235 carbon steel

End plate: 5mm Q235 carbon steel

Manhole Cover: carbon steel

Bottom Valve: aluminum API pneumatic bottom valve

Discharging Valve: diameter is 4 inch

Compartments: 4 compartments or customized

Discharging Pipe: 4 inch rubber hose, 2pcs, 6m/each

Axle: 3 axles*13T/14T/16T*BPW/ FUWA brand

Landing Gear: JOST brand

King Pin: JOST 2.0 or 3.5 inch

Suspension: mechanical suspension

Leaf Spring: 90(w)mmx13(thickness)x10 layers

Braking System: WABCO brand

Rim: 9.00-22.5/8.00-20

Tire: 12 units, 12.00R22.5/315.80R22.5/11.00R20/12.00R20

ABS: optional

Painting: 1 layer of anticorrosive primer and 2 layer of top coats

Accessories: one standard tool box

Shipping Terms: by bulk cargo/RORO/container

Color: optional

All the accessories we choose are purchased and processed through formal channels. To ensure the highest quality and working performance of fuel tank semi trailer.

Steel Plate/Axle/Tires/Leaf Springs/Suspension/Landing Gear

Choose YUHANG:

The fuel tanker trailer tank body we sell use advanced large-scale special automatic welding machinery and equipment. The tank body is formed in one step, which reduces the number of welding times and improves the safety performance of the tank body by at least 30%. After the tank body and other accessories are welded, they will be sanded and painted again to make the tanker semi trailer stronger, safer, more durable, more economical and environmentally friendly.

At the same time, we have advanced testing equipment to analyze and study the composition, hardness, quality, and physical phase of metal at any time to ensure that the processed materials fully meet the standards. YUHANG factory will also inspect and correct weld defects, paint thickness, tank body stress, and penetration to ensure that the trailer is 100% problem-free. The processing conditions under strict procedures make the transportation center of gravity of the fuel tanker trailer more stable and the sales price more stable and reliable, which greatly increases the later working time of the tanker truck trailers.

Fuel Tank Semi Trailer Manufacturing Process:

1. Design: The manufacturing factory should carry out the design, configuration, structure and material layout of the tanker trailer based on the actual transportation needs of the customer and market regulations. At this time, factors such as: the trailer’s load, cargo type, usage environment, tank body pressure, etc. need to be comprehensively considered.

2. Manufacturing: This process requires the production of vehicle frames, tank body, manhole covers, wave protection plates and other components according to design drawings. At this time, various professional equipment will be used to perform cutting, stamping, riveting, welding and other related operations to ensure that the structure of the trailer is strong and stable.

3. Assembly: At this stage, the manufactured components need to be installed together with axles, tires, leaf springs, tool boxes, braking systems, lights, etc. During the assembly process, the relationship between each component needs to be considered to ensure the overall performance and work efficiency of the trailer.

4. Inspection: Finally, a comprehensive quality inspection is required on the completed oil tank semi trailer to ensure the safety and reliability of the trailer. The inspection content mainly includes: whether the appearance, size and installation of the trailer meet the requirements, and whether the various functions are normal.

Tank Semi Trailer Video:

Do you need to know more details or features about our fuel tanker trailers and oil tank semi trailers? Please feel free to contact YUHANG or directly fill in the inquiry information in the form below.

---
