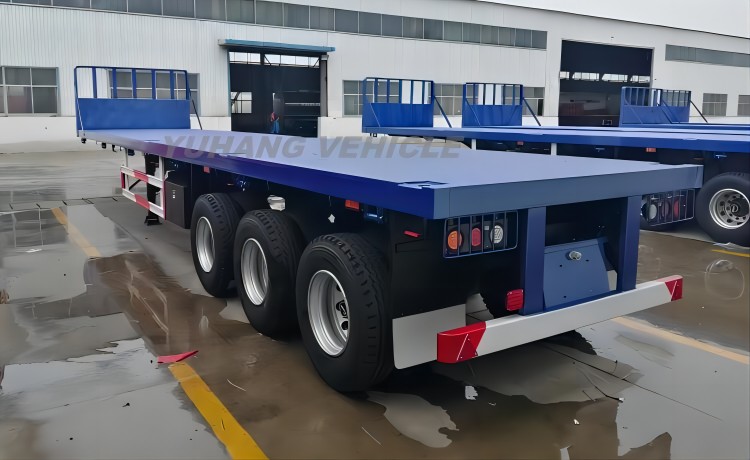

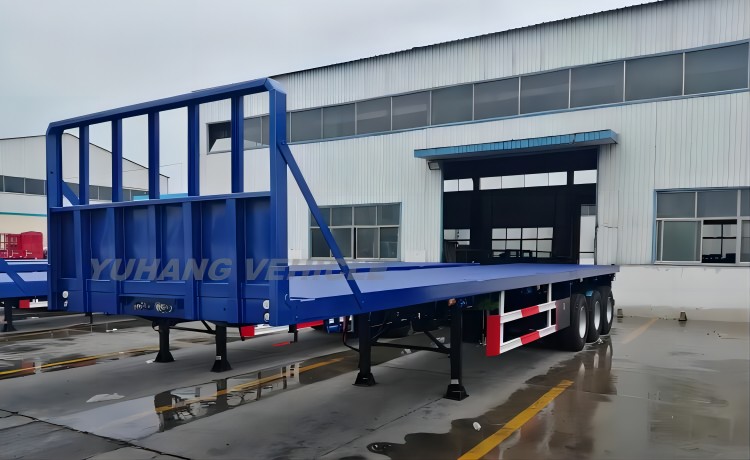

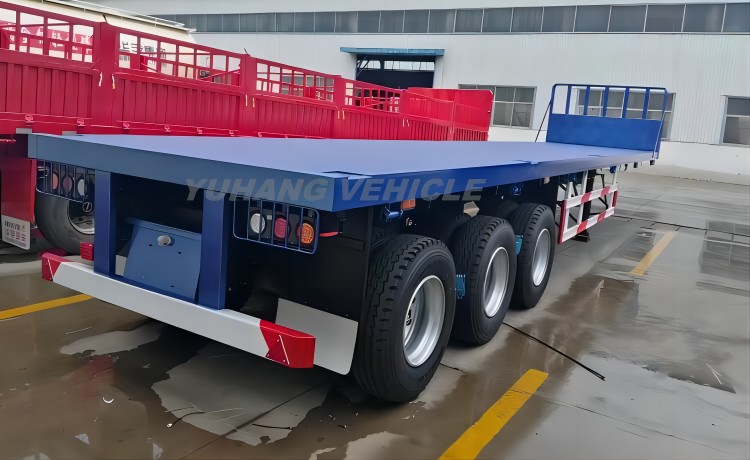

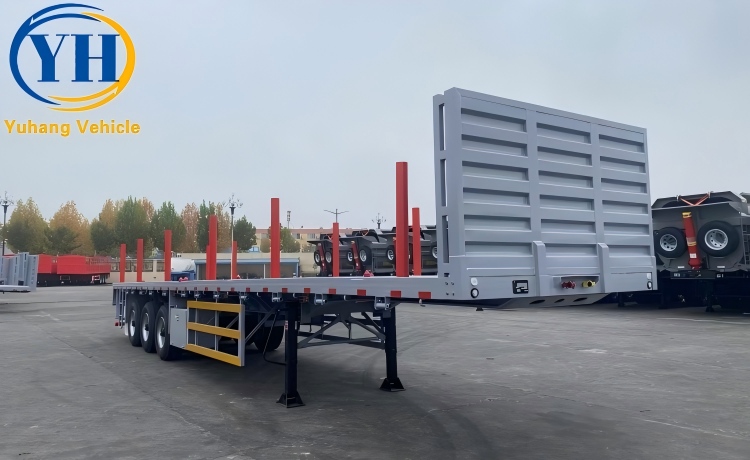

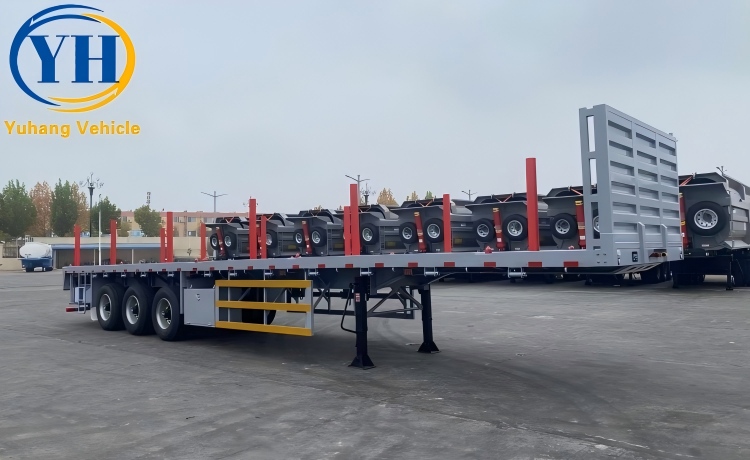

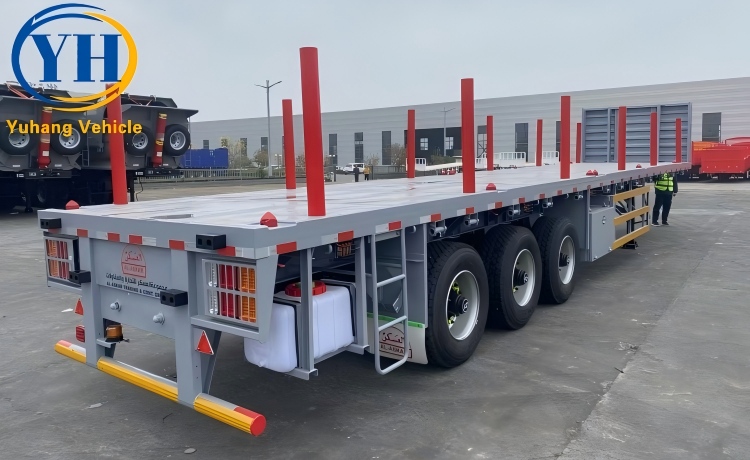

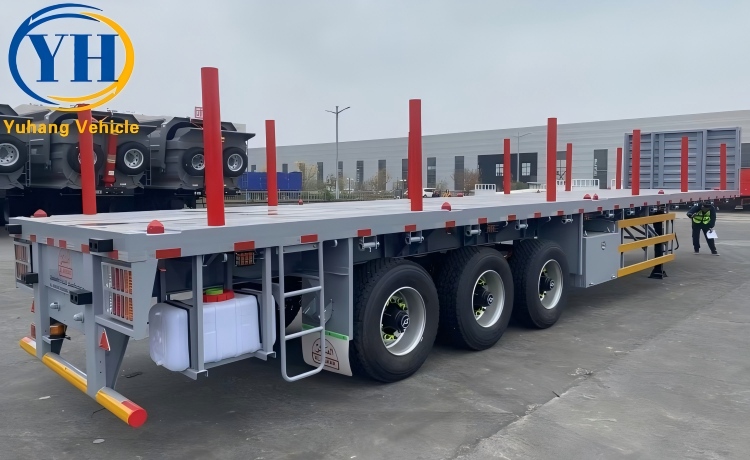

3 Axle Flatbed Trailer with Front Board

Description

Description：

We have 3 axle flatbed trailer with front board for sale, it can load 40ft container, and can also transport 20ft, 45ft, 48ft standard size container.

YUHANG 3 axle flatbed trailer is one of the most popular model for customer. We also have 2 axle/4 axle/5 axle flatbed semi trailer for sale with loading capacity from 30 tons to 90 tons.

Our flatbed trailer have high cost performance, good adaptability and safe operation data in long-term heavy-load transportation. Customers can use it safely and securely for a long time.

The whole vehicle adopts world-renowned brand parts, so that the 3 axle flatbed trailer with front board has the best quality and saves maintenance costs for customers.

3 axle flatbed trailer with front board for sale

40 foot flatbed semi trailer price

China first class container flatbed trailer supplier–YUHANG

Advantage：

● The main beam of the flatbed trailer is integral, not spliced; it makes the flatbed semi trailer have a higher loading capacity and a longer service life.

● After fully understanding and absorbing the traffic environment of different countries, update and upgrade the flatbed semi trailer to make it more durable.

● The whole process adopts advanced automatic submerged arc welding technology, the weld seam is tight and firm, the solder joints are uniform, and it is not easy to crack and break.

● 3mm thick wear-resistant and non-slip checkered plate ensures the safety and reliability of bulk cargo during transportation.

● The whole vehicle is sprayed with polyurethane paint, which is bright in color, corrosion-resistant, and lasts for a long time.

Specification:

Model: 3 axle flatbed trailer with front board

Dimension(L*W*H): 12000x2500x1550mm

Application: transport 20ft, 40ft, 45ft, 48ft containers

Loading Capacity: 30-90T

Main Beam: height 500mm, upper plate 14mm, middle plate 8mm, bottom plate 16mm, material Q345B steel

Side Beam: 16mm or 18mm steel channel

Platform: 3mm-thick checkered plate

Axles: 3 axles*13T/14T/16T/18T*FUWA/BPW brand

Tire: 12 units*11.00R20/12.00R20/12.00R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: mechanical suspension or air suspension

Spring Leaf: 90(w)mmx13(thickness)mmx10 layers

King Pin: 50(2 inch)#or 90(3.5 inch) bolted or welded

Landing Gear: JOST brand

Twist Locks: 4/8/12 pcs

Brake Valve: WABCO valve

ABS: optional

Light: LED light

Voltage: 24V

Accessories: 1 set tool box, 2 set spare tire carrier

Shipping Terms: bulk carrier, Ro-Ro ship or container

---
