4 Axle 48 Foot Flat Bed Trailers

Description

Description：

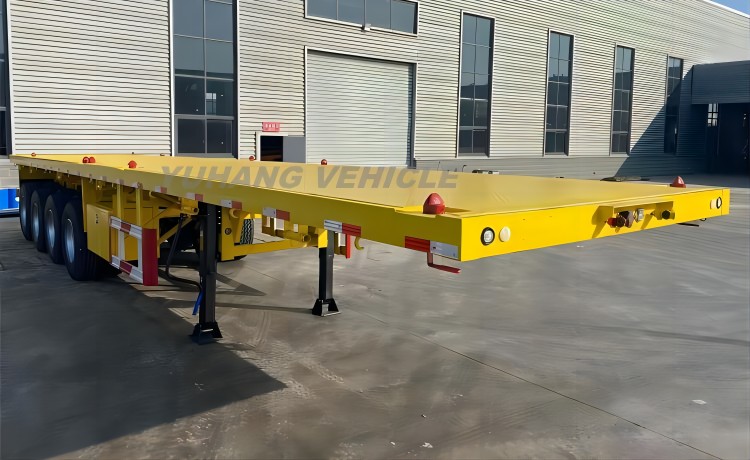

YUHANG brand 4 axle 48 foot flat bed trailers are mainly used for bulk cargo and container transportation in ports, waterways, expressways, transfer stations, bridges, tunnels and other places.

The flatbed trailers we produce sell well all over the world, and are deeply loved and purchased by customers from many countries.

We use high-quality steel plates and various well-known brand components to make the 48 foot flat bed trailers more durable and continuous use.

According to the actual transportation needs of customers, we can change the technical specifications and configuration of the trailer and customize the production of special-purpose flatbed trailer.

4 axle flat bed trailers for sale

48 foot flatbed trailer with the best price

China first class flatbed trailers manufacturer

Advantage：

A: The main beam of the 4 axle 48 foot flat bed trailers is made of Q345B high-strength steel plate, which makes it have stronger bearing capacity and longer service life.

B: We uses advanced fully automatic submerged arc welding technology to manufacture flatbed trailer, with tight welding seams, high welding quality, beautiful appearance, and no missing welding.

C: The whole vehicle is shot blasted and derusted, sprayed with polyurethane paint, which is corrosion-resistant, anti-shedding, and environmentally friendly.

D: An experienced and professional team is responsible for the packaging and transportation of the flatbed trailer, saving time and cost for customers.

E: We are responsible for life for every flatbed trailer sale. If there is any problem, we are always ready to provide a solution.

Specification:

Dimensions(L*W*H): 13500*2500*1550mm

Application: transport 40ft, 45ft, 48ft ISO container

Weight: about 8.6 tons

Payload: 30-90 ton

Main Beams: Q345B, upper plate14mm, middle plate 8mm, bottom plate 16mm

Platform: 3mm thickness checkered plate

Axle: 4 axles*13t/14t/16t*FUWA/BPW brand

Tire: 16 sets*12R22.5

Suspension: mechanical suspension or air suspension

Twist Locks: 12 pcs

Kingpin: JOST brand

Spring Leaf: 90(w)mmx13(thickness)mmx10 layers

Landing Gear: JOST brand

ABS: optional

Brake System: WABCO valve

Electical System: 24V, LED lights

Socke: 7-pin Socket (for 7 wire harness)

Accessories: one tool box, spare tire carrier

Shipping Terms: bulk carrier, ro-ro ship or 45ft HQ container

---
