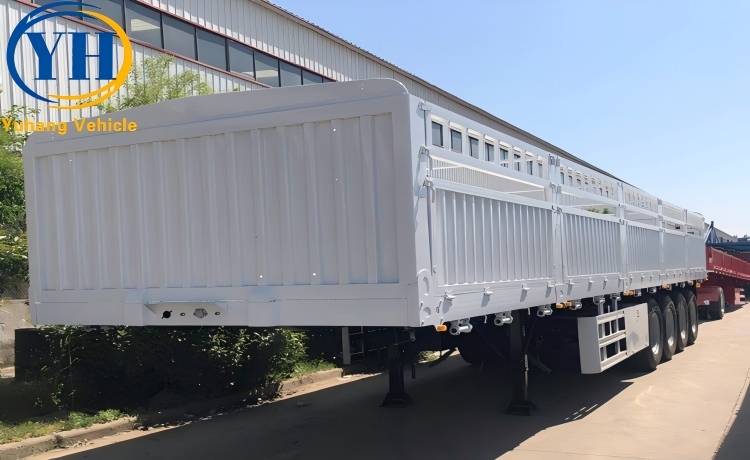

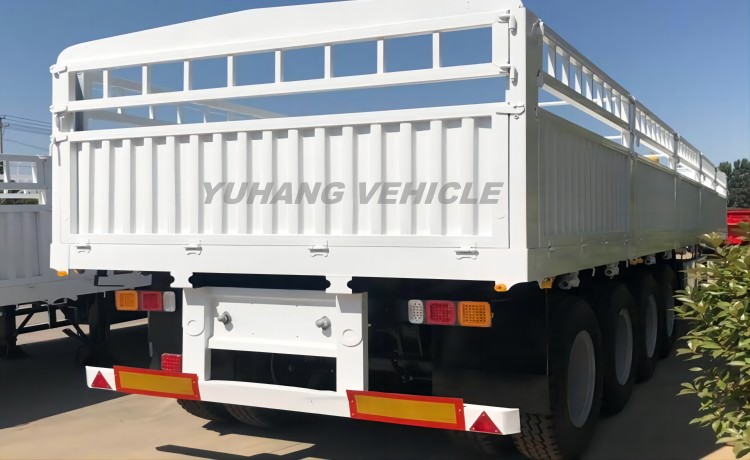

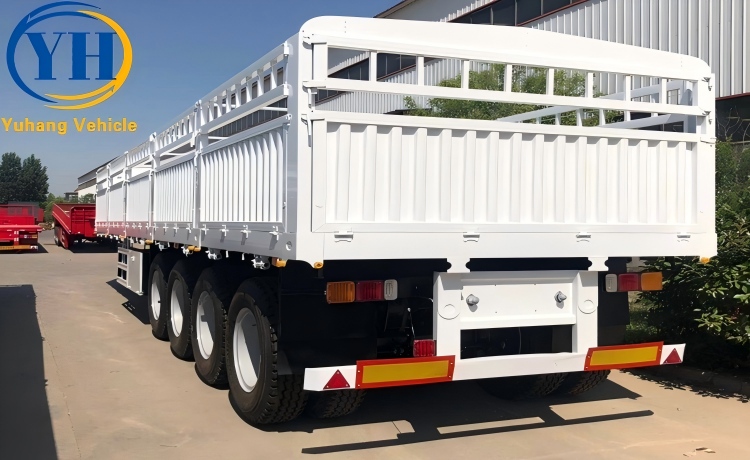

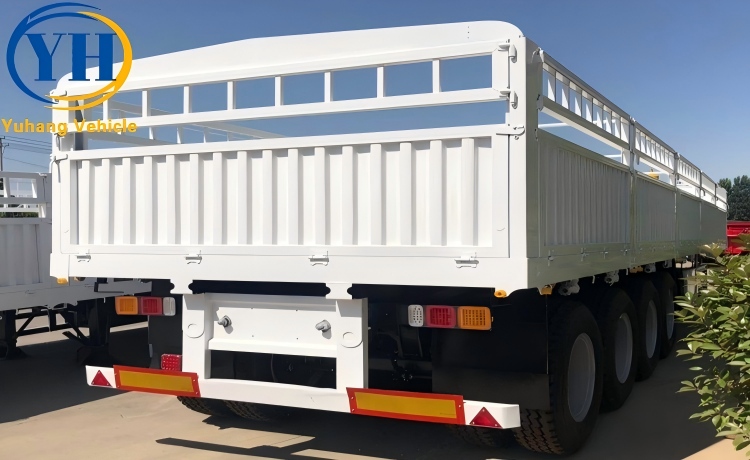

4 Axle 80 Ton Stake Semi Trailer

Description

Description：

4 axle 80 ton stake semi trailer is used to load various bulk goods and materials, such as: vegetables, bags, poultry, cartons, daily necessities. The loading capacity is 30-80 tons.

Due to its strong loading capacity, high transportation efficiency and low investment cost, the fence semi trailer has become the main cargo loading vehicle.

Our 4 axle stake semi trailer can be used to transport 20 feet, 40 feet, and 45 feet containers after adding a sets twist locks, truly realize multiple purposes of one vehicle.

YUHANG factory technical service team will provide you with a complete cargo transport vehicle solution to meet your special transport needs and comply with local regulations.

4 axle stake semi trailer for sale

80 ton fence cargo trailer price

China famous stake semi trailer manufacturer

Advantage：

● The frame of the 80 ton stake semi trailer adopts a space frame structure formed by the integral welding of the longitudinal beam passing through the transverse beam, which increases the load-carrying capacity of the vehicle and does not deform under heavy load.

● The structure design of fence cargo trailer combined with the user’s cargo type fully reduces the vehicle’s own weight, reduces investment costs and creates more profit value for you.

● The 4 axle 80 ton stake semi trailer has a simple structure and is easy to disassemble, improving the efficiency of cargo loading and unloading.

● All components of YUHANG adopt world-renowned brands to prolong the service life of the stake semi trailer.

Specification:

Model: 4 Axle 80 Ton Stake Semi Trailer

Dimension(mm): 13500x2600x3450mm

Tare Weight: 8,000kg

Trailer Sides: 1800mm

Loading Capacity(ton): 80 ton or customized

Main Beam: height 500mm, upper plate 14mm, middle plate 8mm, bottom plate 16mm, made of Q345B steel

Side Beam: 16mm or 18mm Q235 channel steel

Platform: 3mm-thick checkered plate

Axles: 4 axles*13T/16T*FUWA/BPW brand

Tire: 16 units*12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: heavy duty mechanical suspension

Spring Leaf: 90(w)mmx13(thickness)mmx10 layers or 100mmx12mmx12 layers

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand double speed, external 28 ton

Twist Locks: 4/8/12 sets (lifting or screw type)

Brake Valve: WABCO valve

ABS: optional

Color: optional

Light: LED light

Voltage: 24V

Socket: 7-pin Socket (for 7 wire harness)

Painting: polyurethane anti-corrosion paint

Accessories: one standard tool box, spare tire carrier

Shipping Terms: bulk carrier, Ro-Ro ship or container

---
