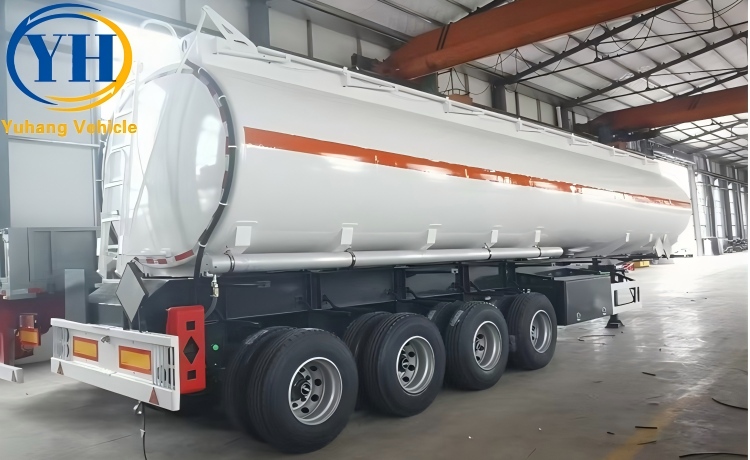

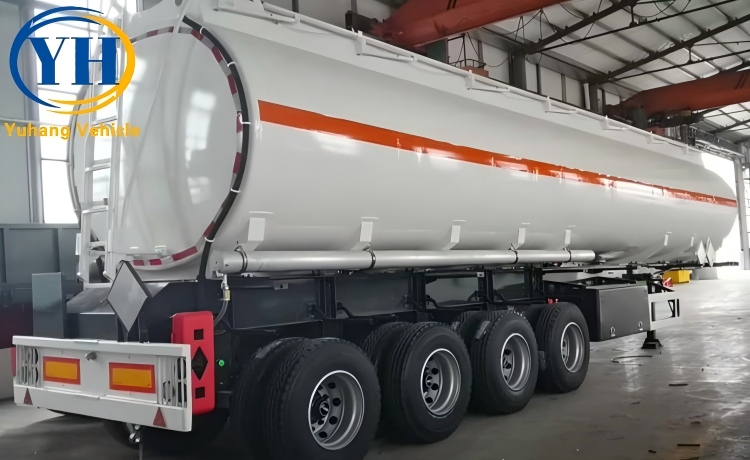

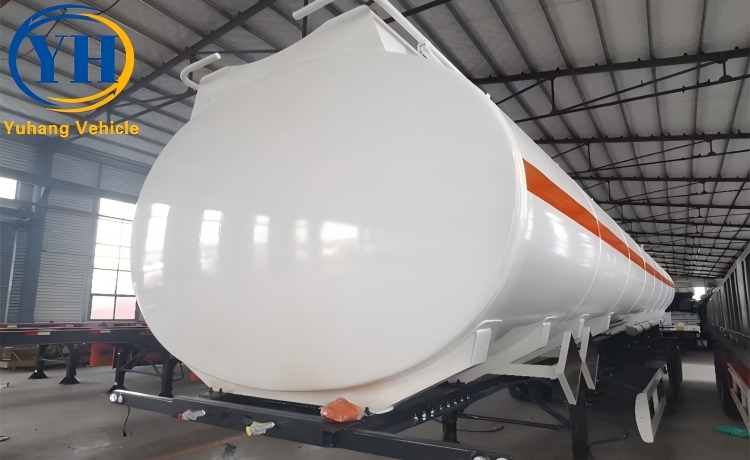

4 Axle Fuel Transport Trailer

Description

Description：

Fuel transport trailer for sale is mainly used for transporting liquid substances like petroleum, diesel, petrol and cooking oil and palm oil. YUHANG brand fuel tanker capacity is very good.

Our 4 axle fuel transport trailer is generally made of carbon steel plates, but can also be made of materials such as stainless steel or aluminum alloy. Customers can choose according to actual transportation needs.

There are different compartments inside the tank body of the fuel tanker trailer. 2, 3, 4 or more compartments, which can be loaded with different liquids.

The loading capacity of YUHANG VEHICLE fuel transport trailer can be customized, 40,000 liters, 50,000 liters, 60,000 liters and other specifications.

4 axle fuel transport trailer for sale

YUHANG 50000 litres fuel tanker trailer prices

China four axles oil tanker trailers manufacturer

Advantage：

The tank body of the 4 axle 50000l fuel transport trailer is made of high-strength wear-resistant steel plate, which is durable and has a long service life.

After the tank body is welded, it is treated by shot blasting and derusting, which has low maintenance cost, durable and beautiful outer surface, and is easy to clean.

The whole vehicle is equipped with high-quality mechanical suspension, which has a strong bearing capacity and can be applied to more complex road conditions.

Electrophoretic powder spraying and baking paint process, full luster, corrosion resistance, softer and more beautiful color of the whole vehicle.

Specification:

Dimension: 1150mm*2500mm *3800mm

Total Volume: 50000L or or customized

Tank Body Material: 5mm Q235 carbon steel

End plate: Q235 carbon steel

Manhole Cover: carbon steel

Discharging Valve: diameter is 3 or 4 inch

Compartments: 5 compartments or optional

Main Beams: Q345 carbon steel material

Axle: 4 axles*13T*FUWA brand

Landing Gear: JOST brand

King Pin: JOST brand 3.5 inch

Suspension: mechanical suspension

Leaf Spring: 90(w)mmx13(thickness)x10 layers

Ladder: the tanker is equipped with a front or rear ladder to facilitate the arrival to manholes

Braking System: WABCO

Rim: 9.00-22.5

Tire: 16 units*12R22.5

ABS: optional

Painting: 1 layer of anticorrosive primer and 2 layer of top coats

Accessories: one standard tool box

Shipping Terms: by bulk cargo/RORO/containers

All the accessories we choose are purchased and processed through formal channels. To ensure the highest quality and working performance of fuel tank semi trailer.

Steel Plate/Axle/Tires/Leaf Springs/Suspension/Landing Gear

Choose YUHANG:

The fuel tanker trailer tank body we sell use advanced large-scale special automatic welding machinery and equipment. The tank body is formed in one step, which reduces the number of welding times and improves the safety performance of the tank body by at least 30%. After the tank body and other accessories are welded, they will be sanded and painted again to make the tanker semi trailer stronger, safer, more durable, more economical and environmentally friendly.

At the same time, we have advanced testing equipment to analyze and study the composition, hardness, quality, and physical phase of metal at any time to ensure that the processed materials fully meet the standards. YUHANG factory will also inspect and correct weld defects, paint thickness, tank body stress, and penetration to ensure that the trailer is 100% problem-free. The processing conditions under strict procedures make the transportation center of gravity of the fuel tanker trailer more stable and the sales price more stable and reliable, which greatly increases the later working time of the tanker truck trailers.

Fuel Tank Semi Trailer Manufacturing Process:

1. Design: The manufacturing factory should carry out the design, configuration, structure and material layout of the tanker trailer based on the actual transportation needs of the customer and market regulations. At this time, factors such as: the trailer’s load, cargo type, usage environment, tank body pressure, etc. need to be comprehensively considered.

2. Manufacturing: This process requires the production of vehicle frames, tank body, manhole covers, wave protection plates and other components according to design drawings. At this time, various professional equipment will be used to perform cutting, stamping, riveting, welding and other related operations to ensure that the structure of the trailer is strong and stable.

3. Assembly: At this stage, the manufactured components need to be installed together with axles, tires, leaf springs, tool boxes, braking systems, lights, etc. During the assembly process, the relationship between each component needs to be considered to ensure the overall performance and work efficiency of the trailer.

4. Inspection: Finally, a comprehensive quality inspection is required on the completed oil tank semi trailer to ensure the safety and reliability of the trailer. The inspection content mainly includes: whether the appearance, size and installation of the trailer meet the requirements, and whether the various functions are normal.

Asphalt Tanker Trailer Video:

Do you need to know more details or features about our fuel tanker trailers and oil tank semi trailers? Please feel free to contact YUHANG or directly fill in the inquiry information in the form below.

---
