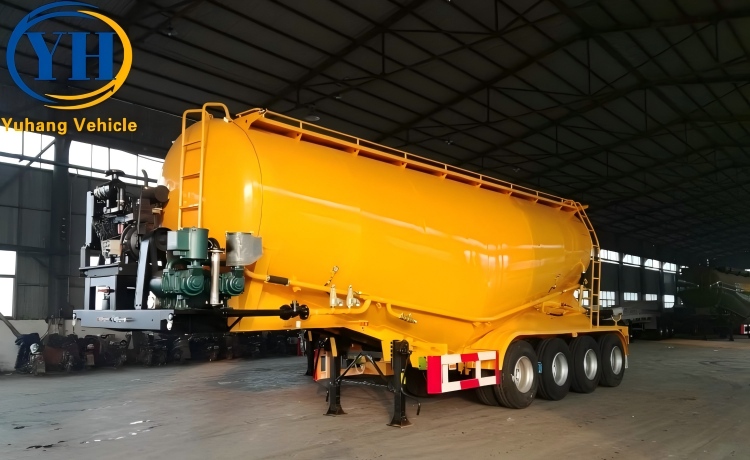

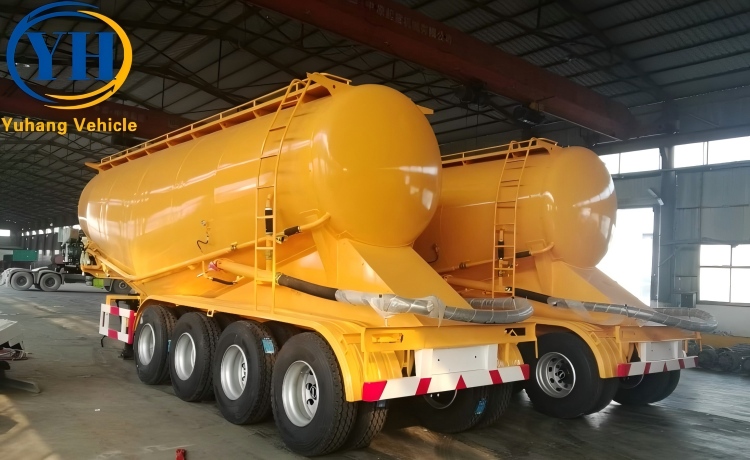

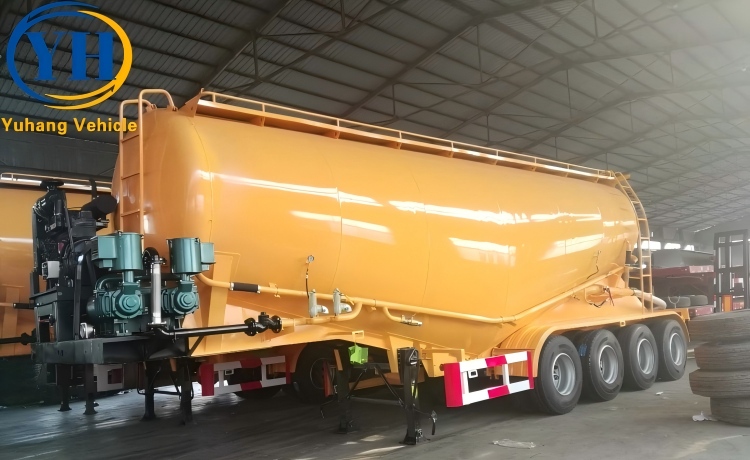

4 Axle Pneumatic Cement Trailer

Description

Description：

4 axle pneumatic cement trailer can be used in cement plants, cement warehouses and large-scale engineering construction sites, it can save a lot of packaging design materials and loading and unloading labor for you.

Our cement tanker trailer is mainly composed of special vehicle chassis, tank body, air pipeline system, automatic unloading device and other structures, such as: power take-off, transmission shaft, diesel engine, air compressor and other components.

The working principle is: the tractor power is used to drive the air compressor, and the compressed air is sent into the air chamber at the lower part of the sealed tank through the pipeline, so that the powder on the liquefied bed of the air chamber is suspended into a fluid state. When the pressure in the tank reaches the rated value, the discharge valve is opened, the fluidized material flows through the pipeline to be transported.

YUHANG brand 4 axle pneumatic cement trailer has the best load quality and low price, our factory ships directly to customers. Welcome to you send an inquiry to get an exclusive quotation.

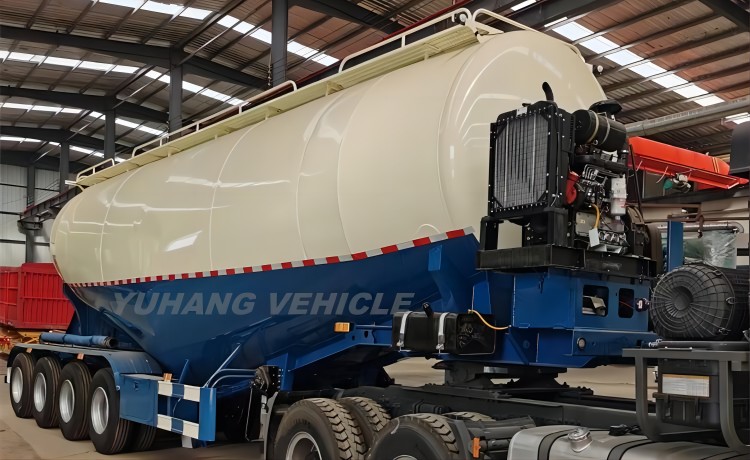

4 axle pneumatic cement trailer for sale

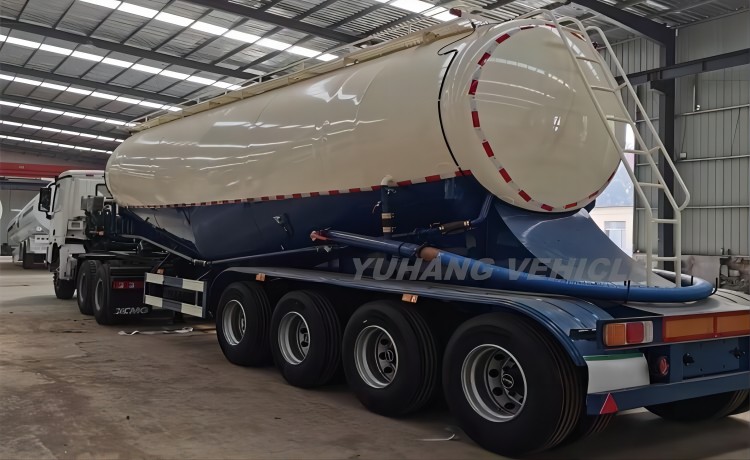

45cbm cement tanker trailer with best price

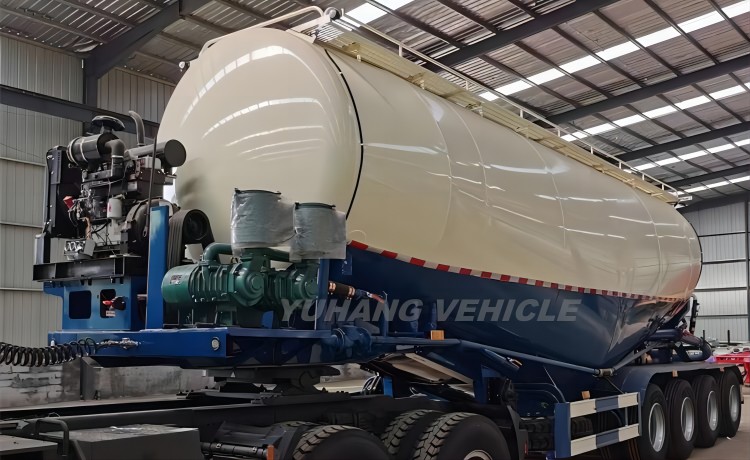

YUHANG brand cement trailer is loading test

Advantage：

● The main beam is made of high-quality high-strength steel plate, supported by advanced welding technology, which ensures that the 4 axle pneumatic cement trailer for sale has a long-term competitive advantage.

● Through upgrading the design structure of the fluidized bed and the pipeline system, the unloading speed will be greatly increased, the operation efficiency will be improved, and more profit value will be created.

● Cement tanker trailer will undergo pressure test and water filling test before leaving the factory to ensure that the tank has good sealing performance.

● The frame and accessories have been treated by shot blasting and sprayed with polymer primer and topcoat, which has strong adhesion, beautiful appearance and corrosion resistance.

● We are well aware of the transportation policies of cement trailers in various countries, and provide you with professional advice in compliance with local regulations.

Specification:

Mopdel: 4 Axles Pneumatic Cement Trailer For Sale

Dimension: 1150mm*2500mm*3900mm (the exact size depends on the final design)

Tanker Body Material: high strength wear-resistance steel

Tank Body Thickness: 3.5mm

Compressor: 12m³ double cylinder air compressor

Application: transport lime, cement, powder etc

Axles: 4 axles, BPW/FUWA brand

Tire: 16 units, 8.25R20/10.00R20/11.00R20/12R22.5, Triangle, Double Coin brand

Suspension: heavy duty mechanical suspension

Landing Gear: JOST brand 28 ton

Leaf Spring: 90(w)mmx13(thickness)mmx10 pieces

Diesel Engine: WEICHAI brand

Compressor: BOHAI

Brake System: WABCO brand

Light: LED light

Voltage: 24V

Tool box: 1 set

Spare Tire Rack: 2 units

Shipping Terms: bulk carrier, Ro-Ro ship, 45ft HQ container

---
