42,000 Liter Oil Tanker Trailers Price

Description

Description：

Oil tanker trailers are generally used to transport gasoline, diesel, vegetable oil, edible oil, coal tar and non-petroleum products, such as: alcohol, benzene, ether and other liquid substances. This fuel tanker cost is very competitive compared to more suppliers.

YUHANG brand new oil tanker trailers have proper load-bearing, anti-deformation, anti-vibration and explosion-proof performance, we insists on creating the most durable and strongest tanker trailers for customers.

The tank body of the oil tanker trailers is made of carbon steel, stainless steel, aluminum-magnesium alloy for you to choose.

The loading capacity of the fuel tanker trailer for sale can be customized according to customer requirements, we provide tanker trailers with various configurations and specifications, the maximum loading can reach 90,000 liters.

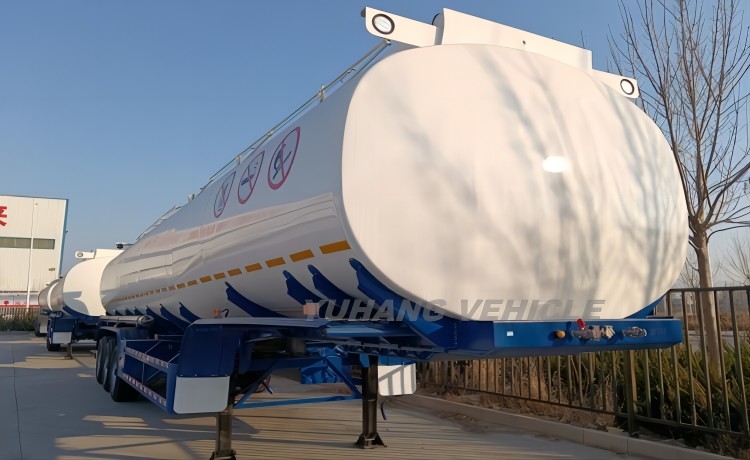

Tri axle oil tanker trailers for sale

42000 liter fuel tanker trailer with the best price

Oil tanker trailers manufacturer–YUHANG VEHICLE

Advantage:

1. YUHANG VEHICLE oil tanker trailers is made of Q235 low-carbon alloy steel plate, which is anti-extrusion, anti-collision, and very strong.

2. The 42000 liter oil tanker trailers for sale adopts longitudinal welding technology to reduce the number of welding and greatly improve the firmness and sealing performance of the tank body.

3. The tanker trailer adopts the European standard explosion-proof cover, which has breathing valve, oil and gas recovery valve and anti-overflow valve inside. To ensure that the use of fuel tanker trailer is safer and more reliable.

4. The professional painting workshop sprays polyurethane paint, which has strong adhesion, beautiful appearance and corrosion resistance.

Specification:

Oil Tanker Trailer Dimension: 1100mm*2500mm*3800mm

Total Volume: customized

Tank Body Material: Q235 carbon steel

End plate: Q235 carbon steel

Manhole Cover: carbon steel

Discharging Valve: diameter is 3 or 4 inch

Compartments: 3 compartments or optional

Main Beams: Q345 carbon steel material

Axle: 3 axles*13T*FUWA brand

Landing Gear: JOST brand

King Pin: JOST 2.0 or 3.5 inch

Suspension: mechanical suspension or airbag suspension

Leaf Spring: 90(w)mmx13(thickness)x10 layers

Braking System: WABCO brand

Rim: 9.00-22.5

Tire: 12 units, 12R22.5

ABS: optional

Painting: 1 layer of anticorrosive primer and 2 layer of top coats

Accessories: one standard tool box

Shipping Terms: by bulk cargo/RORO/containers

All the accessories we choose are purchased and processed through formal channels. To ensure the highest quality and working performance of fuel tank semi trailer.

Steel Plate/Axle/Tires/Leaf Springs/Suspension/Landing Gear

Choose YUHANG:

The fuel tanker trailer tank body we sell use advanced large-scale special automatic welding machinery and equipment. The tank body is formed in one step, which reduces the number of welding times and improves the safety performance of the tank body by at least 30%. After the tank body and other accessories are welded, they will be sanded and painted again to make the tanker semi trailer stronger, safer, more durable, more economical and environmentally friendly.

At the same time, we have advanced testing equipment to analyze and study the composition, hardness, quality, and physical phase of metal at any time to ensure that the processed materials fully meet the standards. YUHANG factory will also inspect and correct weld defects, paint thickness, tank body stress, and penetration to ensure that the trailer is 100% problem-free. The processing conditions under strict procedures make the transportation center of gravity of the fuel tanker trailer more stable and the sales price more stable and reliable, which greatly increases the later working time of the tanker truck trailers.

Fuel Tank Semi Trailer Manufacturing Process:

1. Design: The manufacturing factory should carry out the design, configuration, structure and material layout of the tanker trailer based on the actual transportation needs of the customer and market regulations. At this time, factors such as: the trailer’s load, cargo type, usage environment, tank body pressure, etc. need to be comprehensively considered.

2. Manufacturing: This process requires the production of vehicle frames, tank body, manhole covers, wave protection plates and other components according to design drawings. At this time, various professional equipment will be used to perform cutting, stamping, riveting, welding and other related operations to ensure that the structure of the trailer is strong and stable.

3. Assembly: At this stage, the manufactured components need to be installed together with axles, tires, leaf springs, tool boxes, braking systems, lights, etc. During the assembly process, the relationship between each component needs to be considered to ensure the overall performance and work efficiency of the trailer.

4. Inspection: Finally, a comprehensive quality inspection is required on the completed oil tank semi trailer to ensure the safety and reliability of the trailer. The inspection content mainly includes: whether the appearance, size and installation of the trailer meet the requirements, and whether the various functions are normal.

Petrol Tanker Trailer Video:

Do you need to know more details or features about our fuel tanker trailers and oil tank semi trailers? Please feel free to contact YUHANG or directly fill in the inquiry information in the form below.

---
