45m³ Aluminum Alloy Oil Tankers

Description

Description：

45m³ aluminum alloy oil tankers for sale can be used for loading and transporting fuel, gasoline, diesel, cooking oil, water, palm oil, asphalt and other liquids. Tank truck have more than 20 years of manufacturing experience and transportation history.

Our oil tankers are made of high-quality aluminum alloy; anti-deformation, anti-earthquake, anti-turbulence, to ensure safe and reliable transportation.

The capacity of the oil tankers supports customization, 36,000 liters, 40,000 liters, 45,000 liters, 50,000 liters, and up to 90,000 liters. Optionally install 2 compartments, 3 compartments, 4 compartments or more compartments to carry different liquids.

The whole vehicle is equipped with high-quality heavy-duty mechanical suspension imported from Germany, which has a strong bearing capacity and can be applied to more complex road conditions.

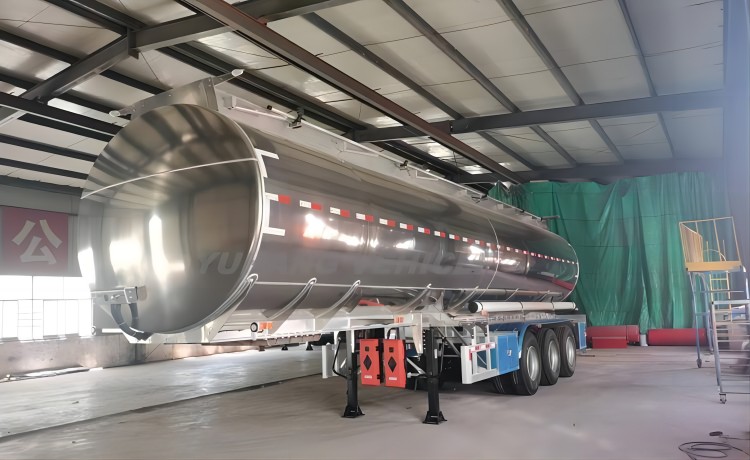

45m³ aluminum alloy oil tankers for sale

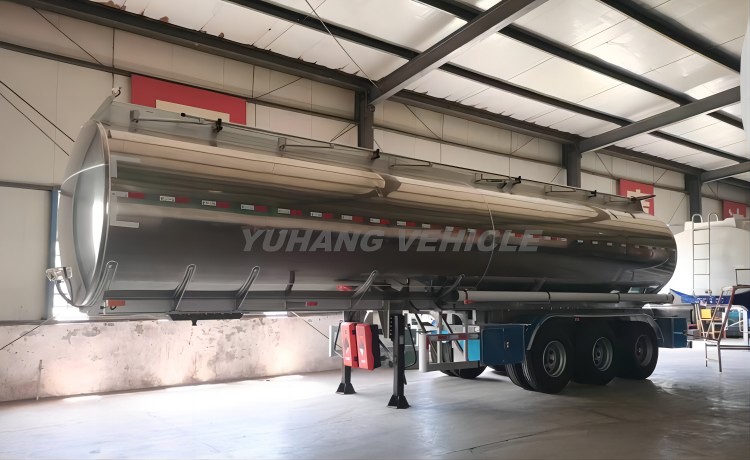

YUHANG Aluminum alloy oil tankers with the best price

Tri axle  aluminum alloy fuel tanker for sale

Advantage:

1. The surface of the 45m³ aluminum alloy oil tankers is made of high-grade polyurethane paint, and the interior is treated with phosphate; it has strong corrosion resistance and its service life can reach more than 15 years.

2. The weight of the aluminum alloy fuel tanker is 1/3 lighter than that of the ordinary material oil tankers trailer, which reduces the operating cost and saves money.

3. After the fuel tanker is welded, it is treated with shot blasting and derusting. The exterior is durable and beautiful, easy to clean and low maintenance cost.

4. YUHANG VEHICLE aluminum alloy oil tankers for sale has a low center of gravity, no flammable materials, low static electricity accumulation, and safer and more stable operation of the vehicle. Currently, it has a good operating record.

5. After the aluminum alloy oil tanker trailer is scrapped, the waste aluminum still has a high recycling value.

6. We can customize the production of oil tankers according to customer requirements.

Specification:

Overall Dimension: 12500mm*2500mm*3800mm

Tare Weight: about 7.5t

load Capacity: 45000L

Application: transport fuel, petrol, oil, cooking oil

Tank Body Material: aluminum alloy 5mm

End Plate: 5mm

Manhole Cover: aluminum alloy

Bottom Valve: aluminum API pneumatic bottom valve

Discharging Valve: diameter is 3 or 4 inch

Discharging Pipe: 4 inch rubber hose, 2pcs, 6m/each

Compartments: 3 compartments or customized

Main beams: Welded design “I” beam, Q345 carbon steel material

King Pin: 2″(50mm) or 3.5″(90mm)

Landing Gear: JOST brand

Suspension: heavy mechanical suspension

Tires: 12 units, 12.00R22.5

Rim: 9.00-22.5/8.00-20/8.5-20

Axle: 3 axles, 13T, 14T, FUWA/BPW brand

Leaf Spring: 90(w)mmx13(thickness)x10 layers or 10mm x12mmx12 layers

Braking System: WABCO brand

Accessories: one standard tool box

Color: optional

All the accessories we choose are purchased and processed through formal channels. To ensure the highest quality and working performance of fuel tank semi trailer.

Steel Plate/Axle/Tires/Leaf Springs/Suspension/Landing Gear

Choose YUHANG:

The fuel tanker trailer tank body we sell use advanced large-scale special automatic welding machinery and equipment. The tank body is formed in one step, which reduces the number of welding times and improves the safety performance of the tank body by at least 30%. After the tank body and other accessories are welded, they will be sanded and painted again to make the tanker semi trailer stronger, safer, more durable, more economical and environmentally friendly.

At the same time, we have advanced testing equipment to analyze and study the composition, hardness, quality, and physical phase of metal at any time to ensure that the processed materials fully meet the standards. YUHANG factory will also inspect and correct weld defects, paint thickness, tank body stress, and penetration to ensure that the trailer is 100% problem-free. The processing conditions under strict procedures make the transportation center of gravity of the fuel tanker trailer more stable and the sales price more stable and reliable, which greatly increases the later working time of the tanker truck trailers.

Fuel Tank Semi Trailer Manufacturing Process:

1. Design: The manufacturing factory should carry out the design, configuration, structure and material layout of the tanker trailer based on the actual transportation needs of the customer and market regulations. At this time, factors such as: the trailer’s load, cargo type, usage environment, tank body pressure, etc. need to be comprehensively considered.

2. Manufacturing: This process requires the production of vehicle frames, tank body, manhole covers, wave protection plates and other components according to design drawings. At this time, various professional equipment will be used to perform cutting, stamping, riveting, welding and other related operations to ensure that the structure of the trailer is strong and stable.

3. Assembly: At this stage, the manufactured components need to be installed together with axles, tires, leaf springs, tool boxes, braking systems, lights, etc. During the assembly process, the relationship between each component needs to be considered to ensure the overall performance and work efficiency of the trailer.

4. Inspection: Finally, a comprehensive quality inspection is required on the completed oil tank semi trailer to ensure the safety and reliability of the trailer. The inspection content mainly includes: whether the appearance, size and installation of the trailer meet the requirements, and whether the various functions are normal.

Aluminum Alloy Oil Tanker Video:

Do you need to know more details or features about our fuel tanker trailers and oil tank semi trailers? Please feel free to contact YUHANG or directly fill in the inquiry information in the form below.

---
