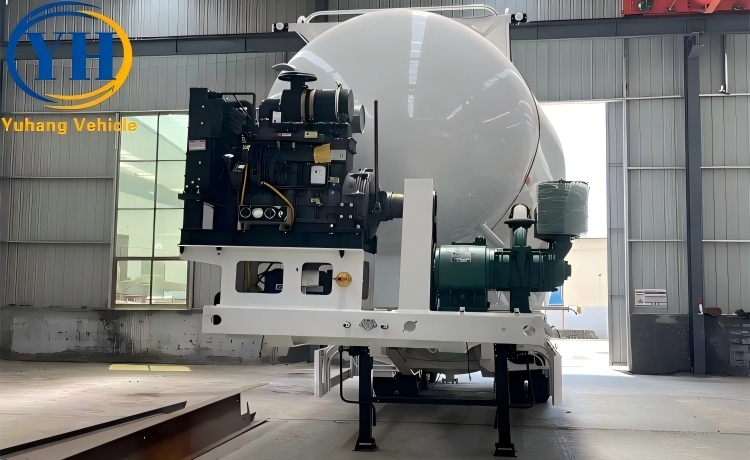

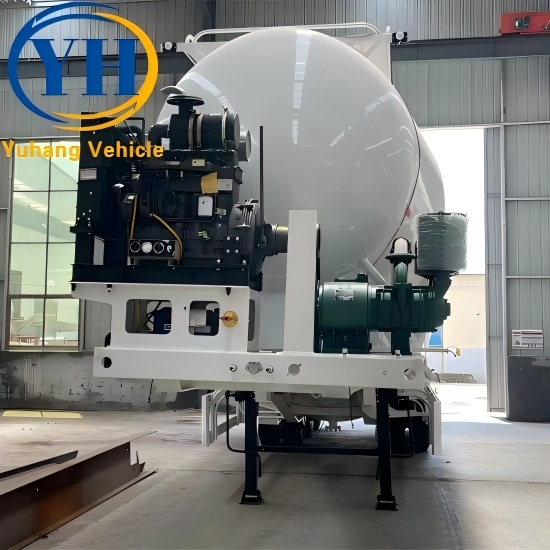

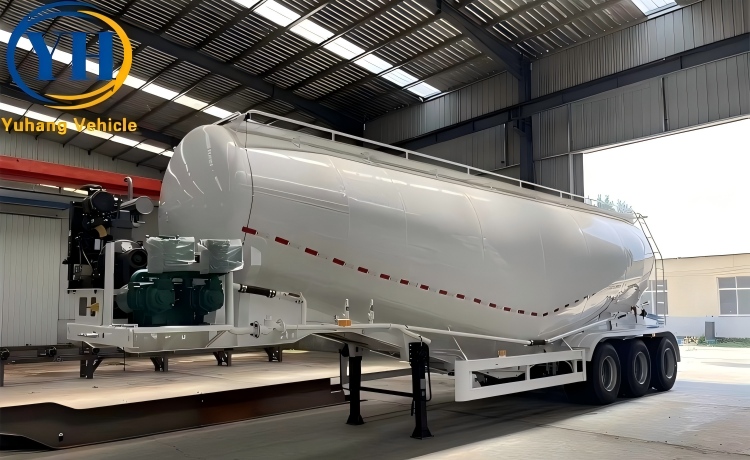

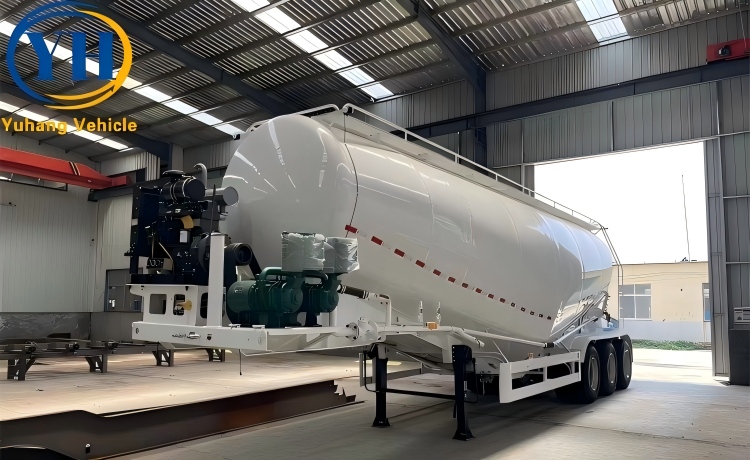

50 Ton Silo Semi Trailer

Description

Description：

50 ton silo semi trailer is also called cement tanker trailer and bulk cement trailer. It is suitable for transporting and loading fly ash, bulk cement, lime powder, ore powder, granular alkali.

The working principle is: the tractor power is used to drive the air compressor, and the compressed air is sent into the air chamber at the lower part of the sealed tank through the pipeline, so that the powder on the liquefied bed of the air chamber is suspended into a fluid state. When the pressure in the tank reaches the rated value When the discharge valve is opened, the fluidized material flows through the pipeline to be transported.

YUHANG brand 3 axle bulk cement trailer is our very best-selling model, and has achieved many successful cases in Southeast Asia, Africa, the Middle East, South America.

We can customize different specifications and volumes of cement tanker trailers according to your cargo attributes, equipped with high-quality diesel engines and air compressors.

50 ton silo semi trailer for sale

3 axle bulk cement trailer with best price

YUHANG brand new cement tanker trailer will send to customer

Advantage：

● The 50 ton silo semi trailer is made of high-quality steel plates and supported by high-quality welding technology, which ensures long-term sales of the cement tanker trailer.

● By upgrading the design structure of the fluidized bed and the pipeline system, the unloading speed will be greatly increased, the operation efficiency will be improved, and more profits will be created.

● All bulk cement trailers will undergo pressure test and water filling test before leaving the factory to ensure that the tank has good sealing performance.

● The frame and accessories have been treated by shot blasting and sprayed with polymer primer and topcoat, which has strong adhesion, beautiful appearance and corrosion resistance.

Specification:

Dimension: 9750mm*2500mm*3900mm (the exact size depends on the final design)

Tanker Body Material: 5mm high strength wear-resistance steel

Tank Body Thickness: 3.5mm

Compressor: 12m³ double cylinder air compressor

Application: transport lime, cement, powder etc

Payload: 50 ton or customized

Axles: BPW/FUWA brand

Tire: 8.25R20/10.00R20/11.00R20/12R22.5, Triangle, Double Coin brand

Suspension: heavy duty mechanical suspension

Landing Gear: JOST brand

Leaf Spring: 10 pieces

Diesel Engine: WEICHAI brand

Compressor: BOHAI

Brake System: WABCO brand

Light: LED light

Voltage: 24V

Tool box: 1 set

Spare Tire Rack: 2 units

---
