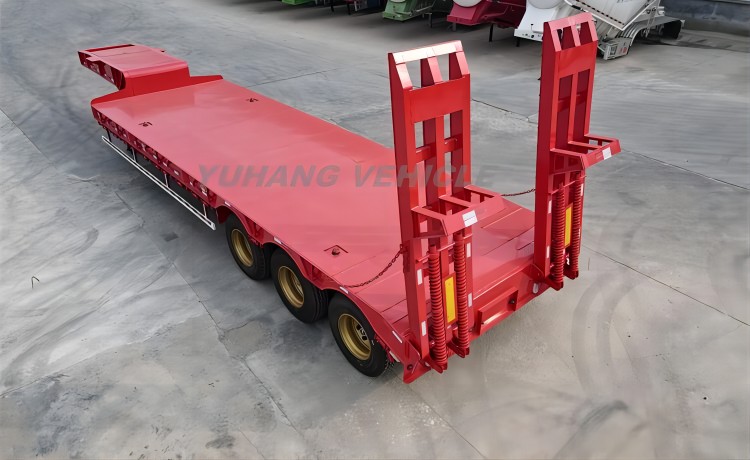

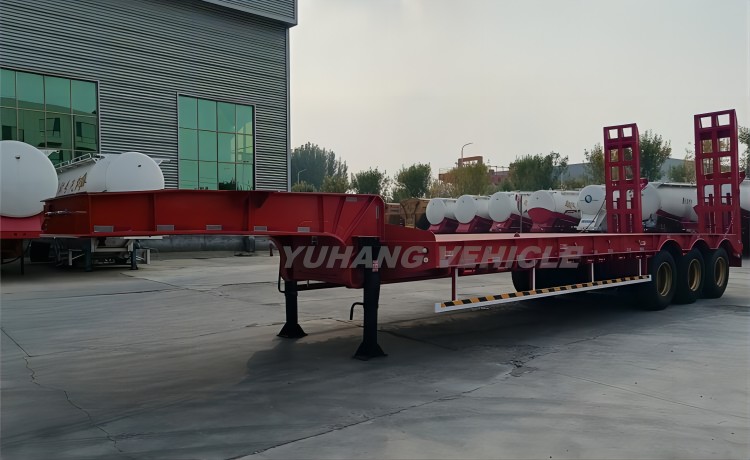

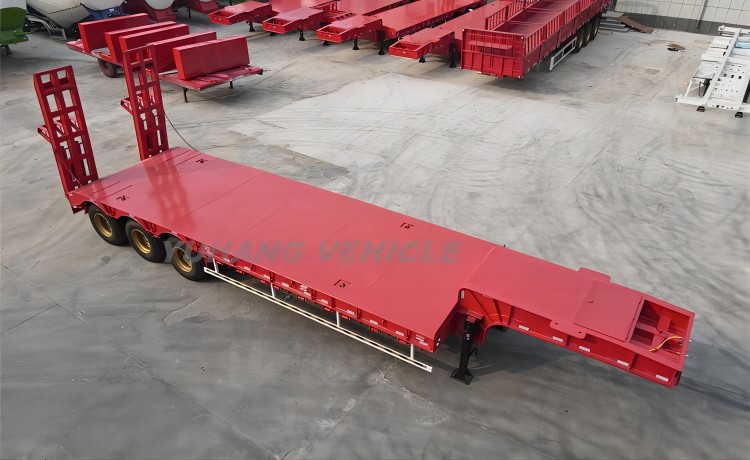

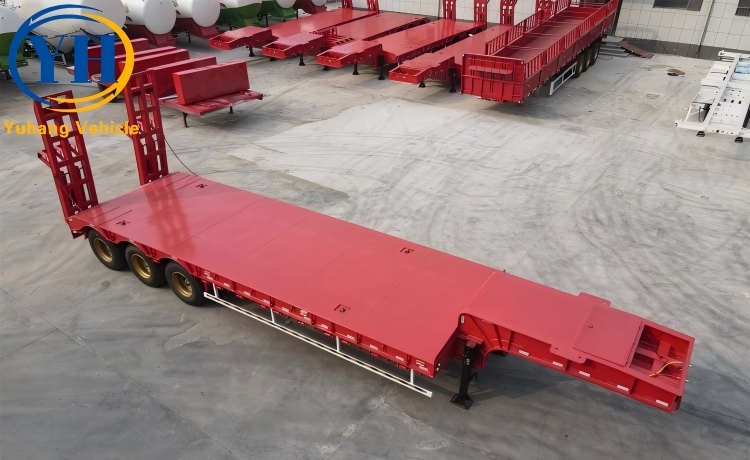

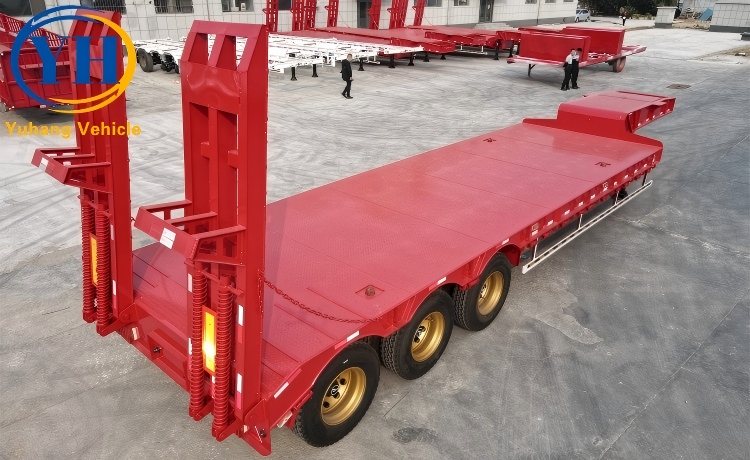

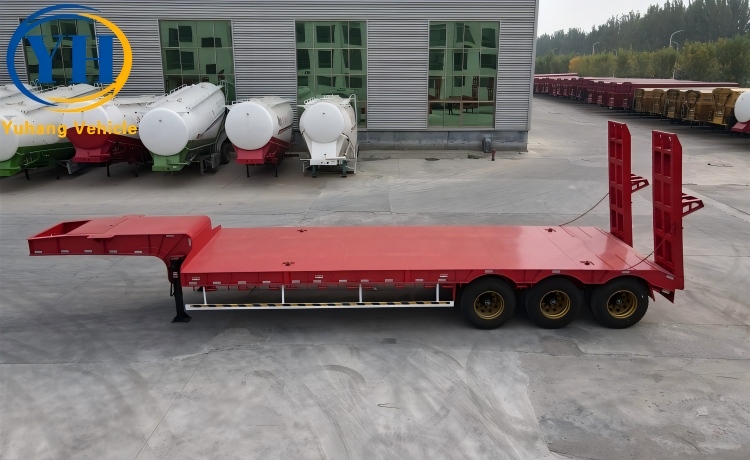

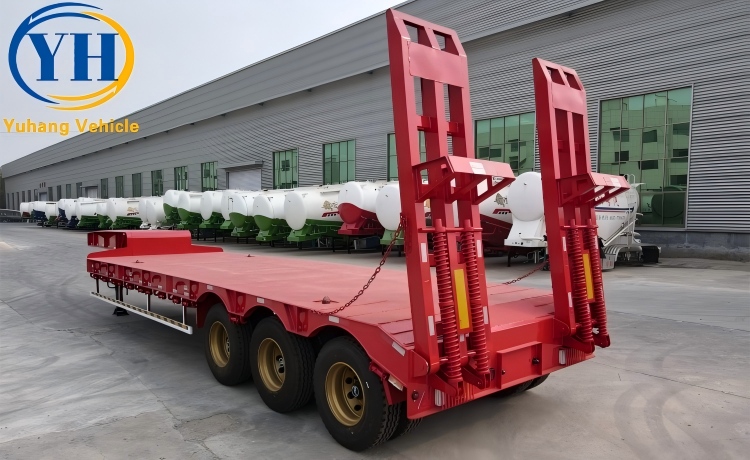

60 Ton Lowbed Trailer

Description

Description：

60 ton lowbed trailer is suitable for the transportation of various construction machinery, large objects, construction equipment, power station facilities and various steel materials.

We have many different models and specifications lowbed trailer for you to choose, such as: ordinary lowbed trailer, high-low-high type, tire exposed lowbed trailer, gooseneck detachable lowbed trailer, multi-axle lowbed semi trailer.

The lowbed trailer has side guards and rear guards to protect pedestrians and other vehicles. Our engineers will design the correct and practical lowbed trailer for you to meet the customer’s load requirements.

YUHANG VEHICLE will test each one lowbed semi trailer sold to ensure that customers can use it safely. If you have lowbed trailer transportation needs, please contact us to get the best quote.

60 ton lowbed trailer for sale

Triaxle lowbed semi trailer price

China lowbed semi trailer manufacturer–YUHANG

Advantage:

1. Our lowbed trailer adopts advanced computer-aided system to optimize the design structure and further improve its carrying capacity.

2. The frame main beams and longitudinal beams are made of high-strength steel plates, which essentially improves the quality of the trailer and makes it stronger and more durable.

3. Fully automatic robot welding technology ensures welding quality and improves welding strength.

4. Use world-renowned brand accessories to save maintenance costs and extend service life.

5. At the same time, we can customize the lowbed semi trailer according to the customer’s requirements to meet the transportation of special goods.

Specification:

Overall Dimension: 13000mm*3000mm*3400mm

Loading Capacity: 60 ton

Main Beam: height 500mm, upper plate: 18mm, middle plate: 12mm, lower plate: 20mm, material: Q345B steel

Bottom Platform: 5mm thick checkered plate

Axle: 13T/16T/18T*FUWA/BPW brand

Rim: 8.0-20

Tire: 12 units*11.00R20/12.00R20/12.00R22.5

Suspension: mechanical suspension

Spring Leaf: 90(w)mmx13(thickness)mmx10 layers

King Pin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing Gear: JOST brand

Ramp: Spring ramp

ABS: Optional

Valve: WABCO valve

Light: LED light

Color: optional

Packing: by Ro-Ro shipment or bulk ship

---
