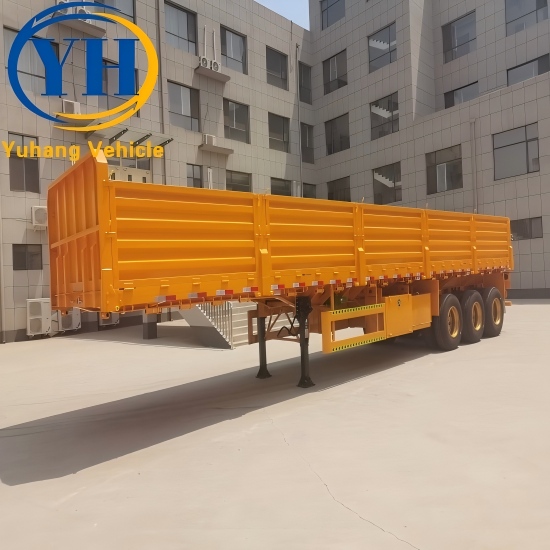

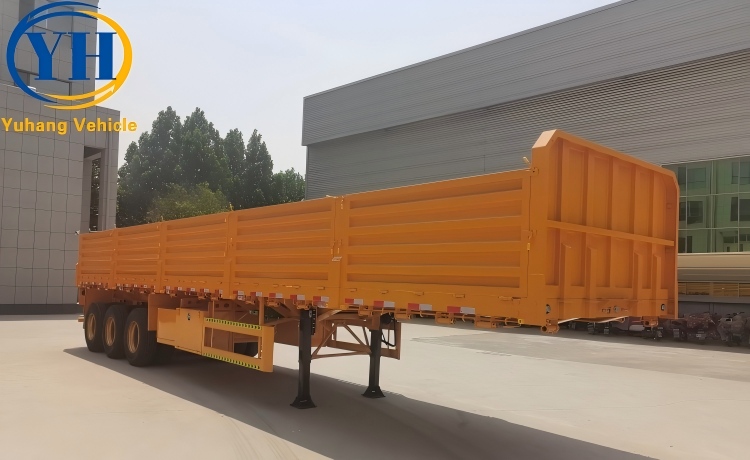

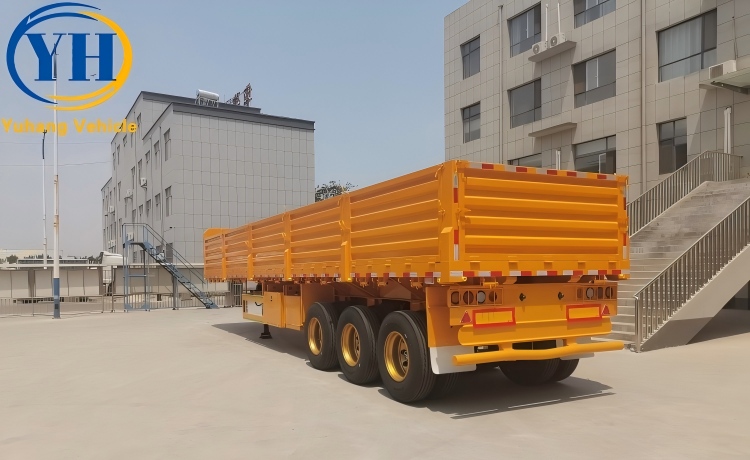

60 Ton Sidewall Truck Trailer

Description

Description：

The 60 ton sidewall truck trailer is a trailer powered by a tractor, which is used to transport bagged cement, vegetables, steel coils, gravel or other bulk goods.

This series of trailer has reasonable structure, strong practicability, simple operation and low investment cost, and has become an important model for road transportation.

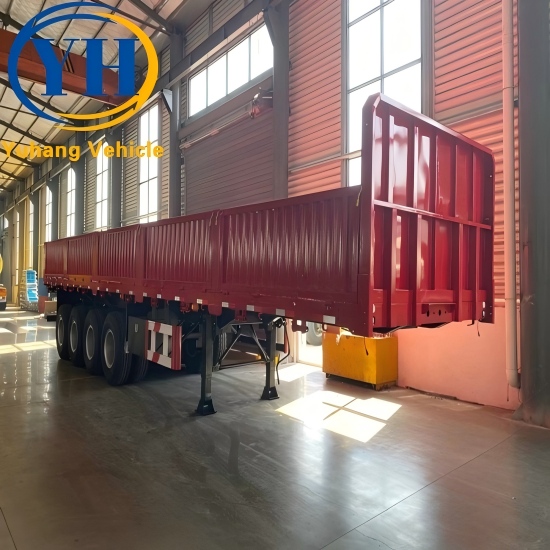

We have 2 axle/3 axle/4 axle/5 axle sidewall truck trailer for sale, with a loading capacity of 30 ton/50 ton/60 ton/80 ton/100 ton and other specifications for you to choose.

YUHANG 60 ton sidewall truck trailer can be used to load 20/40/45ft standard container after adopting container twist locks.

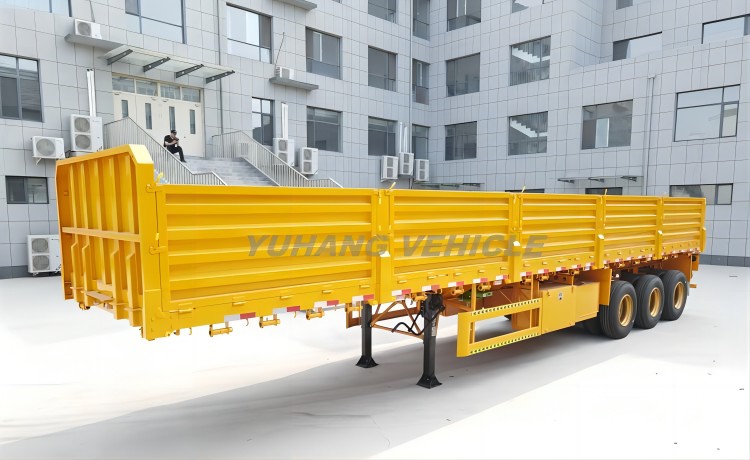

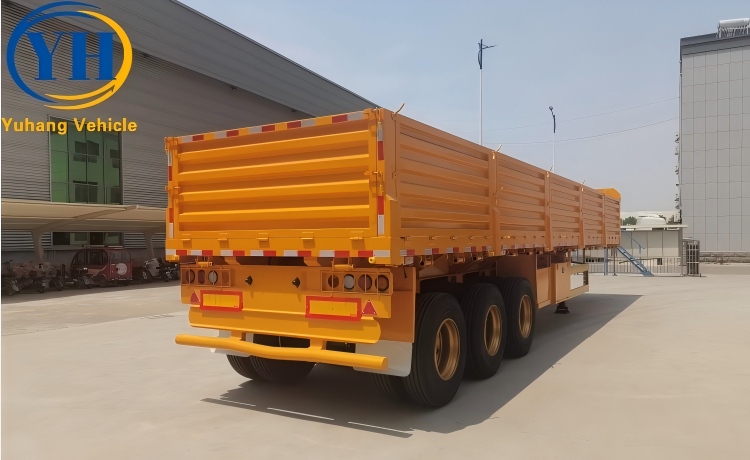

60 ton sidewall truck trailer for sale

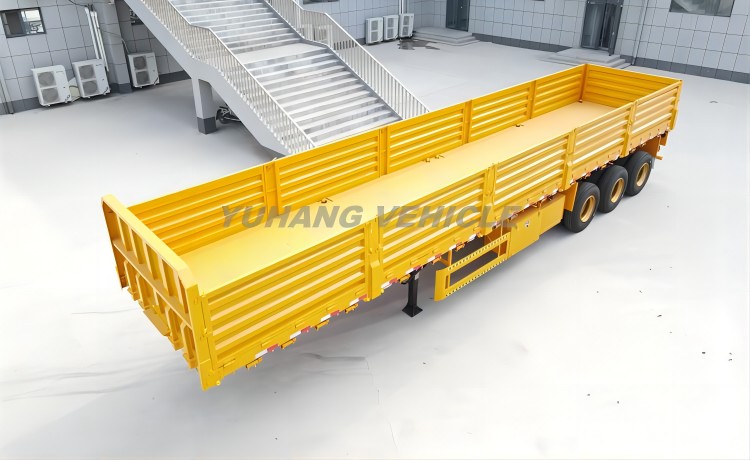

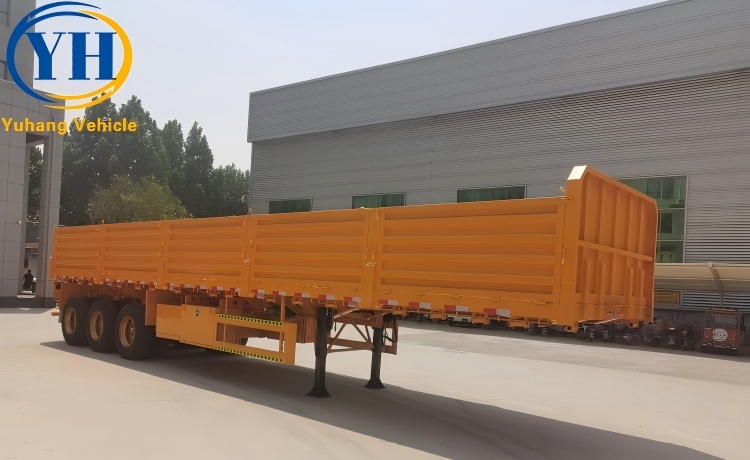

triaxle dropside trailer with best price

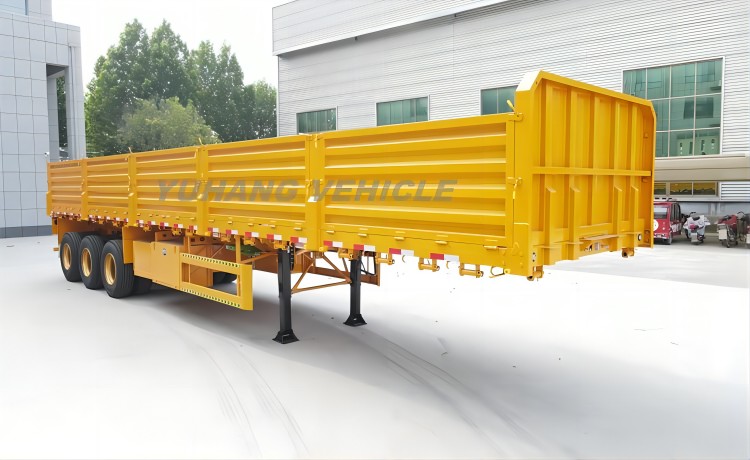

YUHANG brand sidewall cargo trailer manufacturer factory

Advantage：

1. The main beam is made of high-strength, safe and durable steel plate to improve its ability to resist torsion, vibration and bump.

2. The vertical side board design structure increases the loading capacity of the sidewall truck trailer and prevents expansion.

3. The frame is welded in strict accordance with industry standards, which enhances the safety performance of the sidewall trailer and prolongs its service life.

4. Adopt well-known brand accessories and electrification system to ensure the best working condition of the 60 ton sidewall truck trailer.

5. Spray polyurethane paint to prevent the vehicle from rusting and corrosion resistance.

Specification:

Brand: YUHANG 60 Ton Sidewall Truck Trailer

Dimension(L*W*H): 12500x2500x3200mm

Loading Capacity: 60 ton or customized

Main Beam: height 500mm, upper plate 14mm, middle plate 8mm, lower plate 16mm, material Q345B steel

Side Beam: 16mm or 18mm channel steel

Platform: 3 mm-thick checkered plate

Trailer Sidewall: 800mm

Axles: 3 axles*13T/16T*FUWA/BPW brand

Tire: 12 units*12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5 steel wheel rim

Suspension: mechanical suspension

Spring Leaf: 90(w)mmx13(thickness)mmx10 layers or 100mmx12mmx12 layers

King Pin: JOST brand 2.0 or 3.5 inch traction pin

Landing Gear: JOST brand 28t lifting capacity

Twist Locks: 12 sets (lifting or screw type)

Brake Valve: WABCO valve

ABS: optional

Color: optional

Light: LED light

Voltage: 24V

Socket: 7-pin Socket (for 7 wire harness)

Painting: 1 layer of anticorrosive primer and 2 layers of top coats

Accessories: one tool box, spare tire carrier

Shipping Terms: bulk carrier, Ro-Ro ship or container

---
