Fence Semi Trailer for Sale

Description

Description：

Different Types of fence semi trailer for sale, which can be used to transport loose goods such as: bagged cement, bagged flour, vegetables, fruits, steel plates, sand. It is widely used in road transportation.

The fence structure and side wall height of the fence cargo trailer can be adjusted, and we can customize the fence semi trailer according to your special transportation needs.

Our fence semi trailer adopts advanced design concepts and optimizes the structure of the whole vehicle. It has the advantages of large carrying capacity, fast transportation, convenient disassembly, economical and environmental protection, and low investment cost.

YUHANG has 2 axle, 3 axle, 4 axle, 5 axle, 40 ton, 50 ton, 60 ton, 70 ton, 80 ton, 100 ton fence cargo trailers for sale, the best factory price for you.

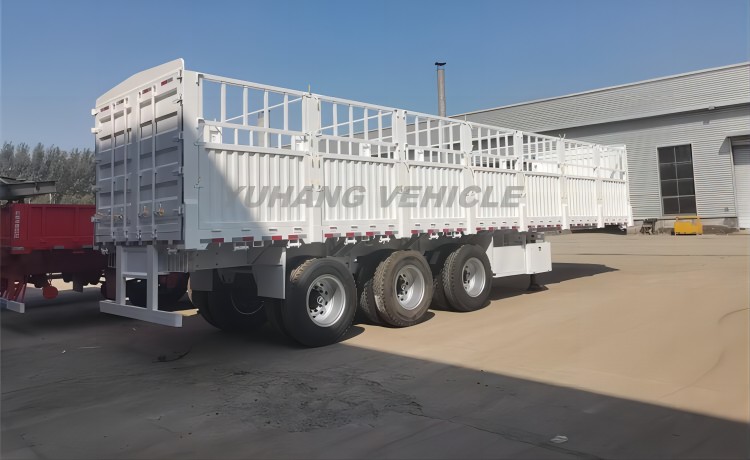

3 axle fence semi trailer for sale

60 ton fence cargo trailer price

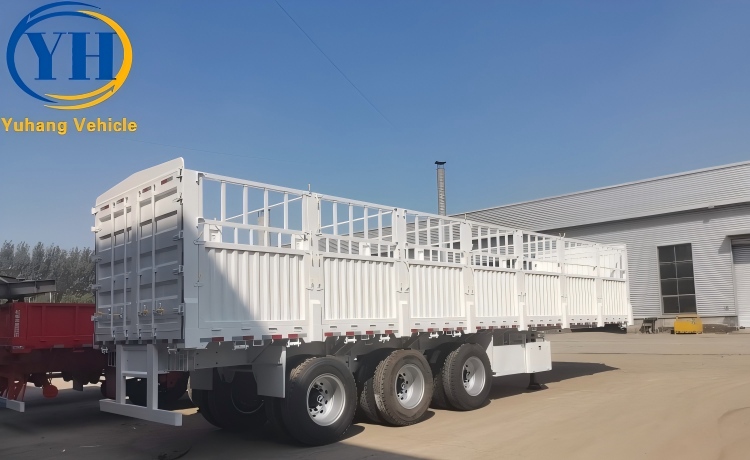

Tri axle fence trailer will ship to customer

Advantage：

The whole vehicle adopts advanced computer three-dimensional design software to optimize the main structure of the vehicle and the frame bearing platform to meet the transportation needs of customers’ special goods.

The main beam is made of high-strength HG60 steel plate, which ensures that the vehicle has the best quality from the source, so that it has stronger loading capacity and more stable performance.

The use of fully automated welding process and equipment not only ensures the welding strength, but also makes the fence cargo trailer beautiful in appearance and environmentally friendly.

Spray polyurethane paint to avoid rust and corrosion of the vehicle and prolong the service life.

Specification:

Dimension(mm): 13000x2600x3500mm

Loading Capacity: 30-80 ton

Main Beam: height 500mm, upper plate 14mm, middle plate 8mm,

bottom plate 16mm, material Q345B steel

Platform: 3mm-thick checkered plate

Axles: 3 axles*13T/16T *FUWA/BPW brand

Tire: 12 units*12.00R22.5

Rim: 9.00-22.5

Suspension: heavy duty mechanical suspension

Spring Leaf: 90(w)mmx13(thickness)mmx10 layers

King Pin: 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand

Brake Chamber: WABCO RE 6 relay valve

Twist Locks: 4/8/12 sets

Brake Valve: WABCO valve

ABS: optional

Light: LED light

Voltage: 24V

Socket: 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m standard size

Painting: 1 layer of anticorrosive primer and 2 layers of top coats

---
